After July 2009 12.25" x 3.375" Hub & Drum Kit – Fits Dexter 9K–10K Axles
After July 2009 12.25" x 3.375" Hub & Drum Kit – Fits Dexter 9K–10K Axles - Drum is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
After July 2009 12.25" x 3.375" Hub & Drum Kit – Fit...

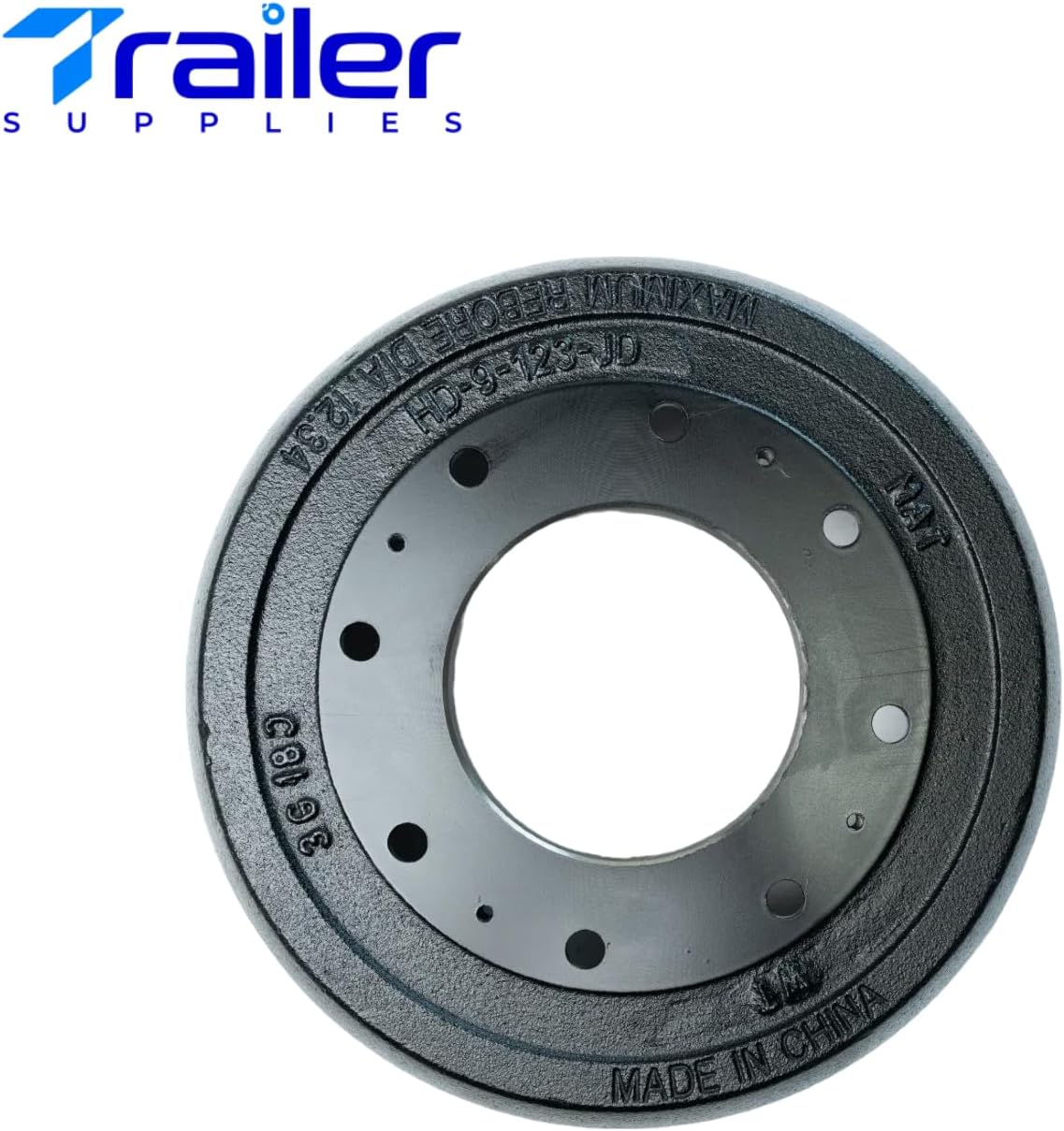

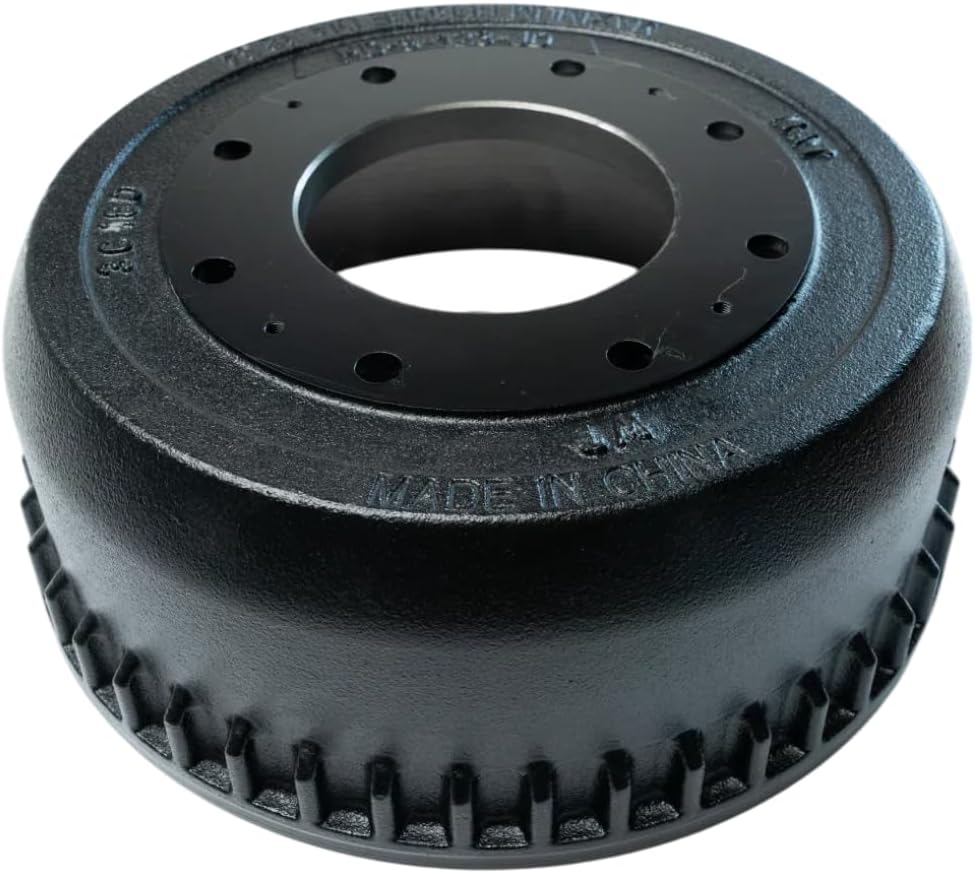

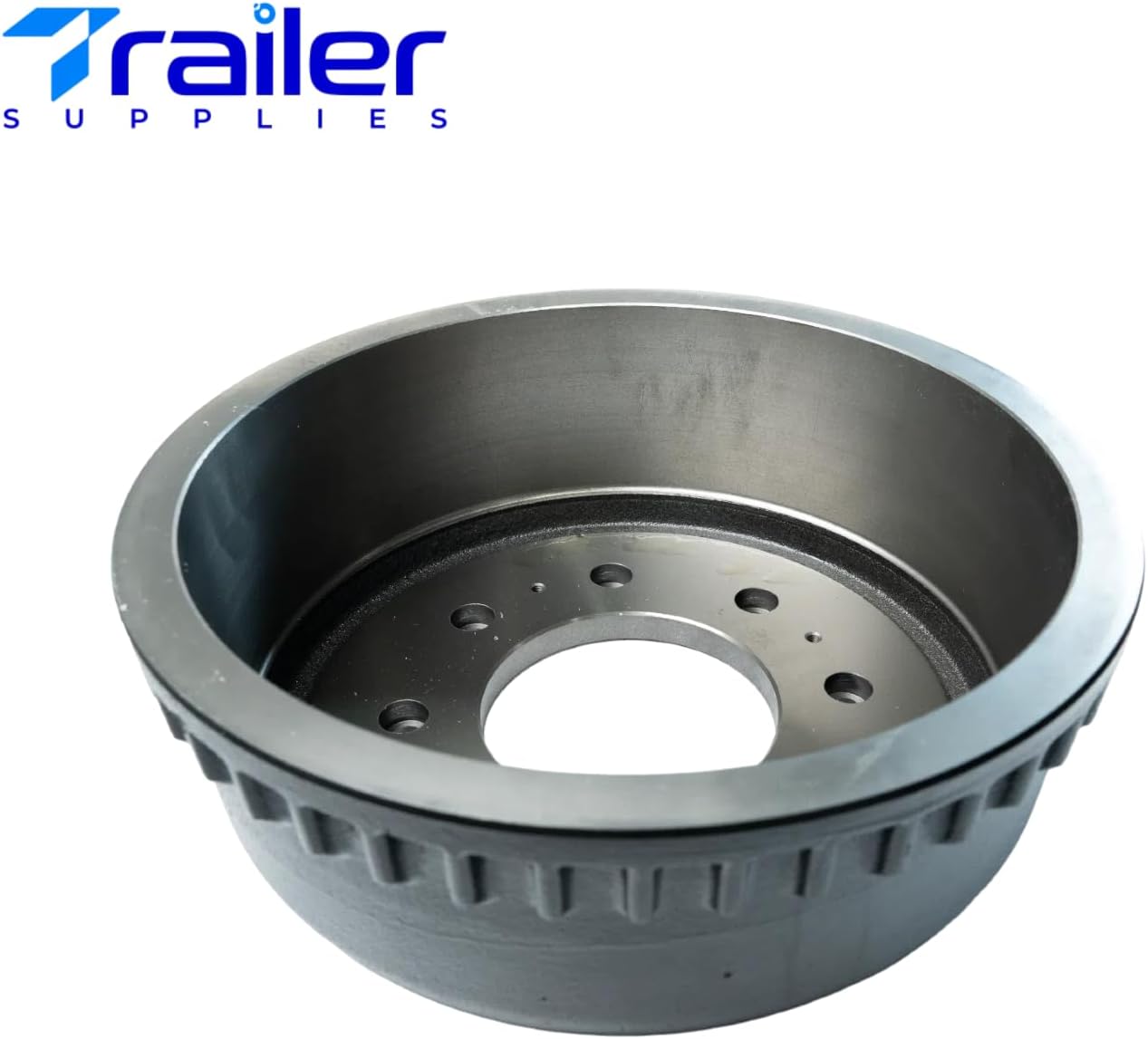

Kit 1 – Brake Drum Only (Dexter 009-123-03 After 2009)
Product Includes
-
(1) Brake Drum – 12.25" diameter × 3.375" width
-
(8) Lug holes – 7.5" bolt circle
(No races, bearings, seals, caps, or hardware included)
Key Features
-
Wide Compatibility – Fits Dexter 9K–10K General Duty axles manufactured after July 2009.
-
OEM Replacement – Direct replacement for Dexter #009-123-03 (after 2009 only).
-
Heavy-Duty Cast Iron – Built for durability and braking reliability in commercial trailers.
-
Precision Fit – Designed for use with 12.25" x 3.375" brake assemblies.
-
Drum Only – Bearings, races, and hardware sold separately.
This brake drum is engineered for Dexter 9K–10K General Duty axles built after July 2009. Precision-machined cast iron ensures consistent braking performance and long-term durability. Designed as a direct replacement for Dexter part #009-123-03, it works seamlessly with 12.25" x 3.375" brake assemblies used in equipment, livestock, and heavy-duty utility trailers.

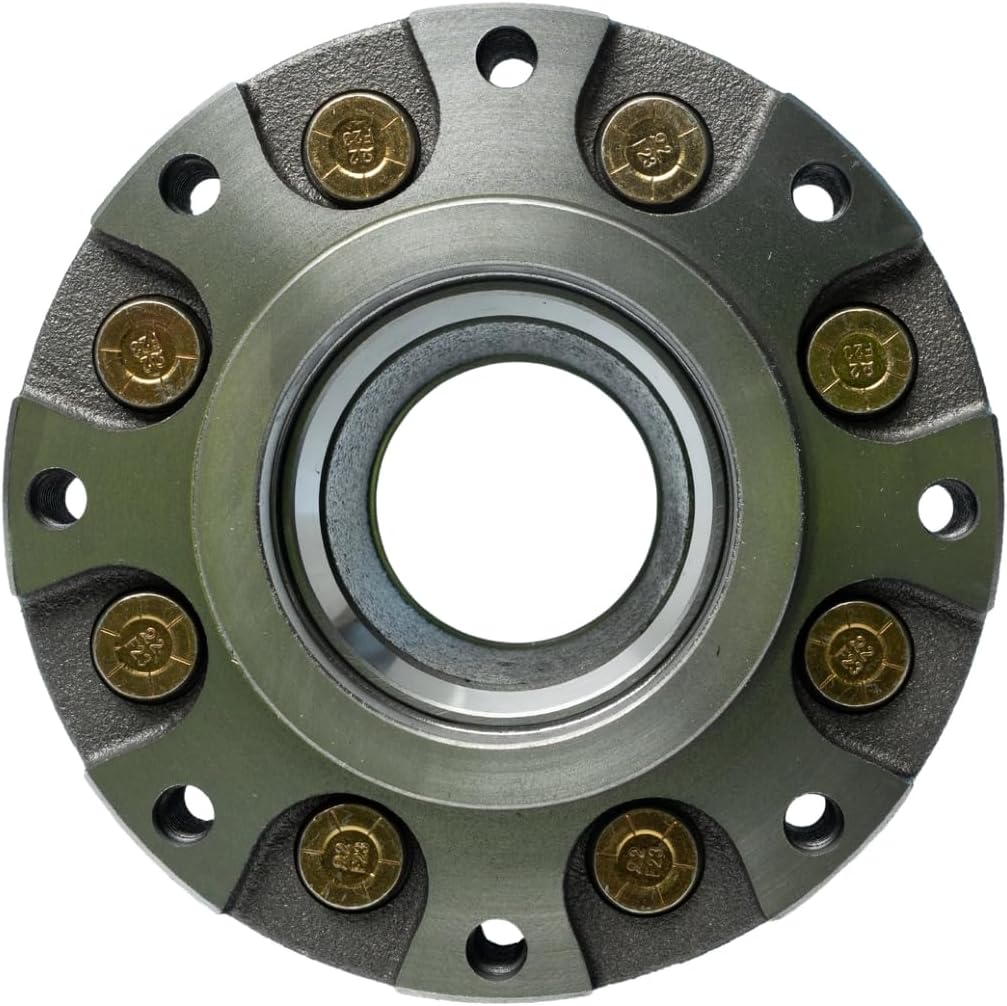

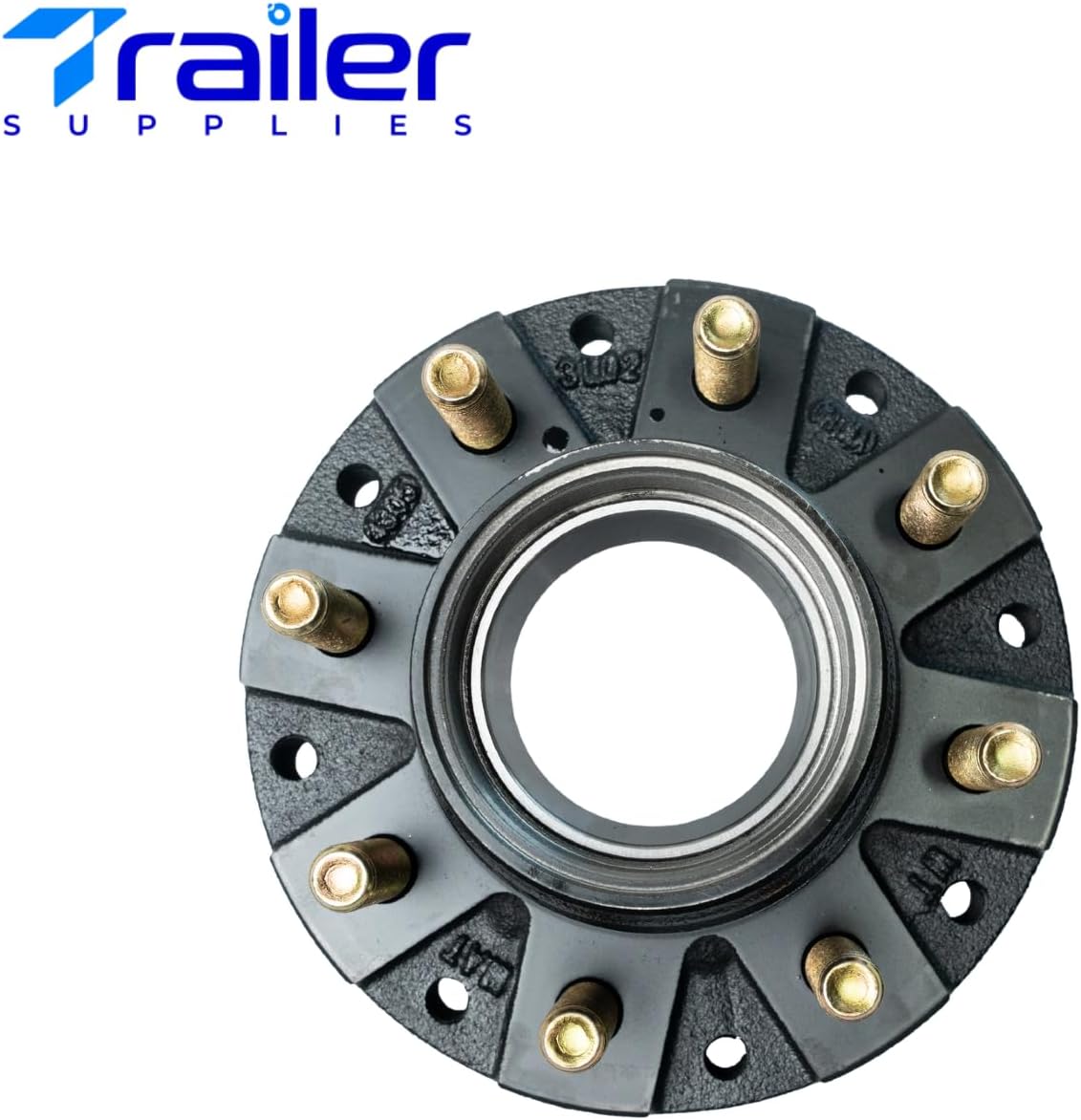

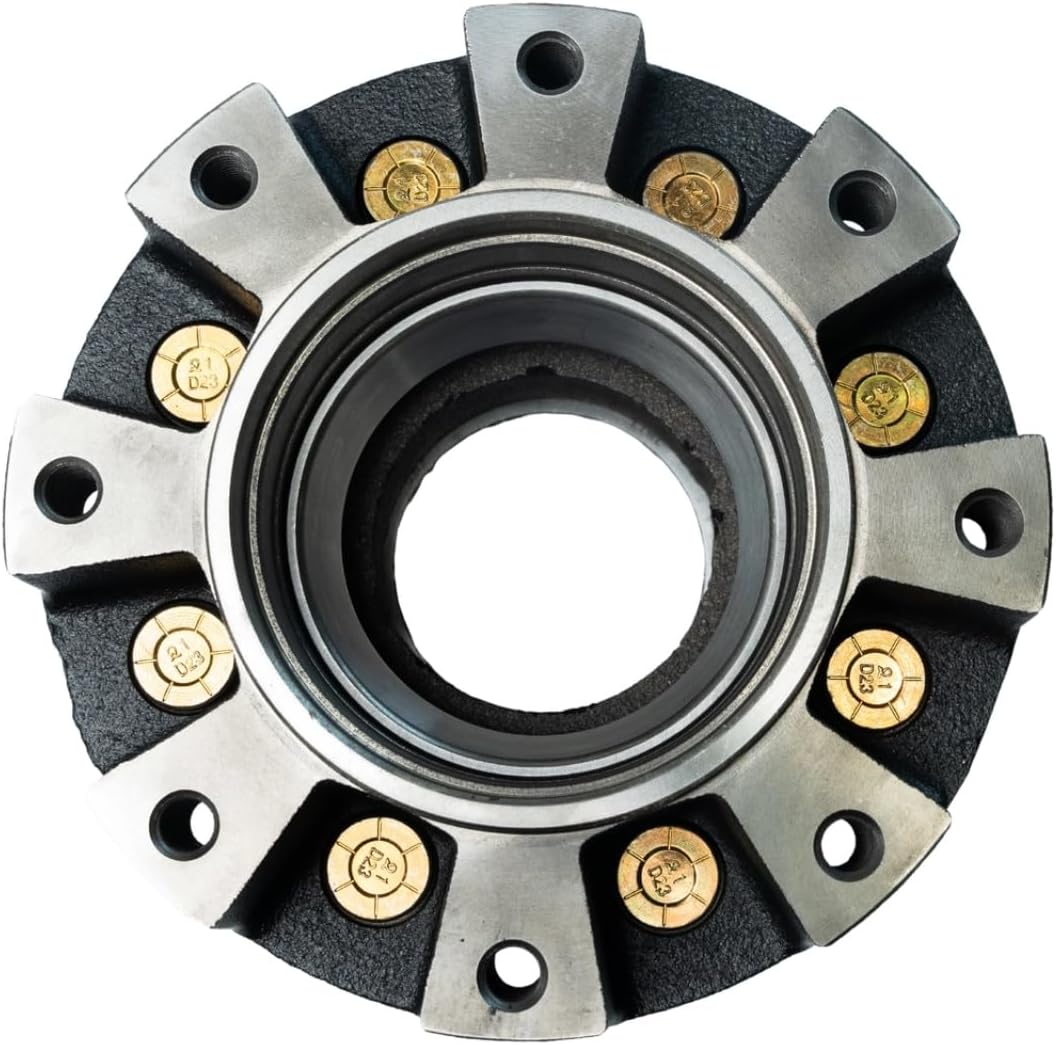

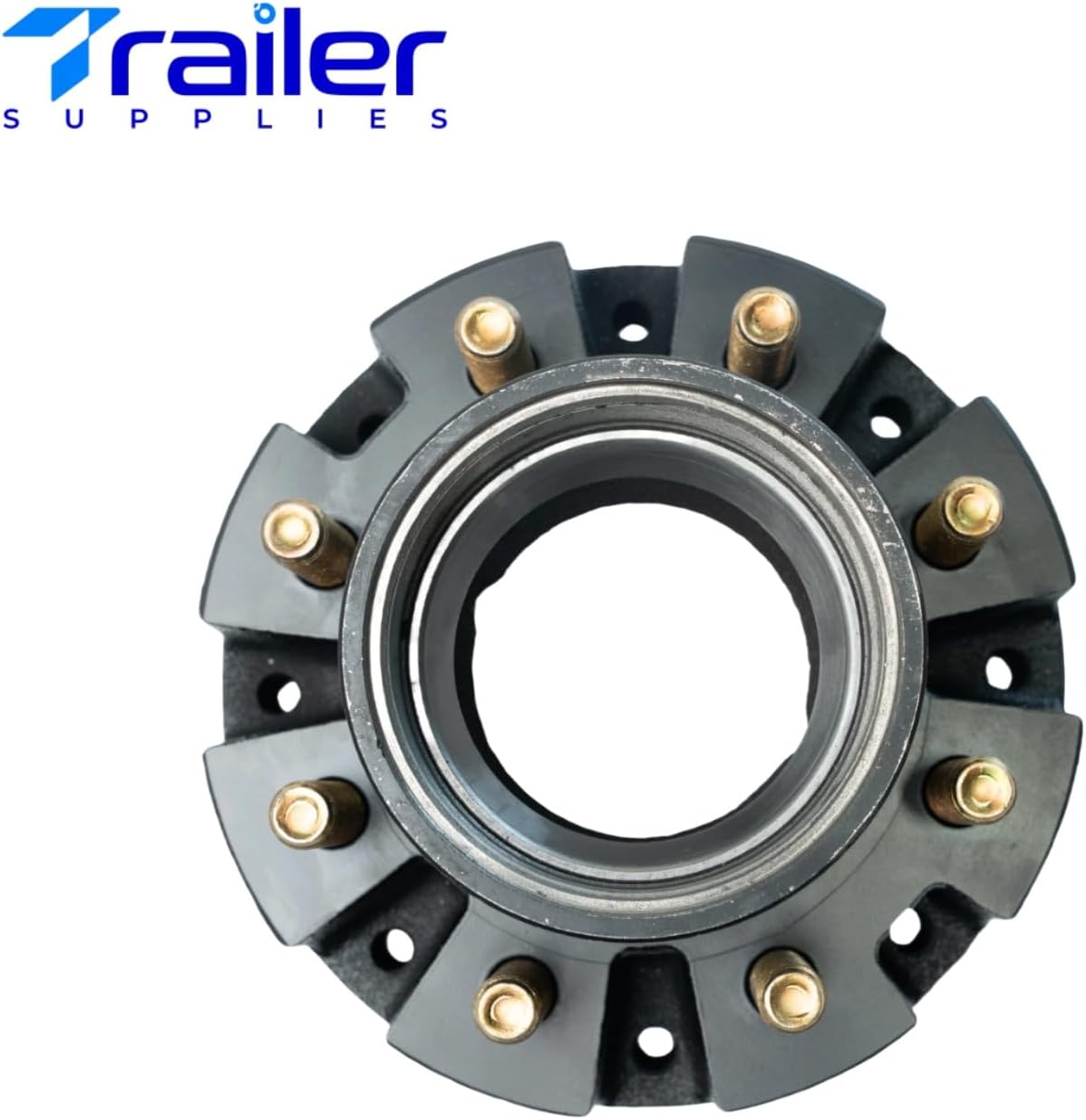

Kit 2 – Idler Hub Only (Dexter 008-430-03 After 2009)
Product Includes
-
(1) Hub – Cast iron, 8 on 6.5" bolt circle
-
(8) Wheel Studs – 5/8"-18 thread × 2.50" length (pre-installed)
-
(1) Inner Race – #382A (OD 3.265") pre-installed
-
(1) Outer Race – #25520 (OD 3.265") pre-installed
(Bearings #25580 & #387A, oil seal, dust cap, and lug nuts not included)
Key Features
-
Fits Dexter 10K GD Axles (After 2009) – Replaces Dexter hub #008-430-03.
-
OEM Replacement – Cross-references with 8-430-03 hub assemblies.
-
Heavy-Duty Construction – Machined hub with 8 on 6.5" bolt pattern.
-
Pre-Installed Races – Inner #382A and outer #25520 pressed in for convenience.
-
Lubrication Options – Compatible with both oil bath and grease systems.
The Dexter-style idler hub is built for 9K–10K General Duty axles manufactured after July 2009. With pre-installed bearing races and heavy-duty 5/8"-18 studs, this hub provides strength and reliability for demanding trailer applications. Perfect for livestock, dump, gooseneck, and utility trailers.

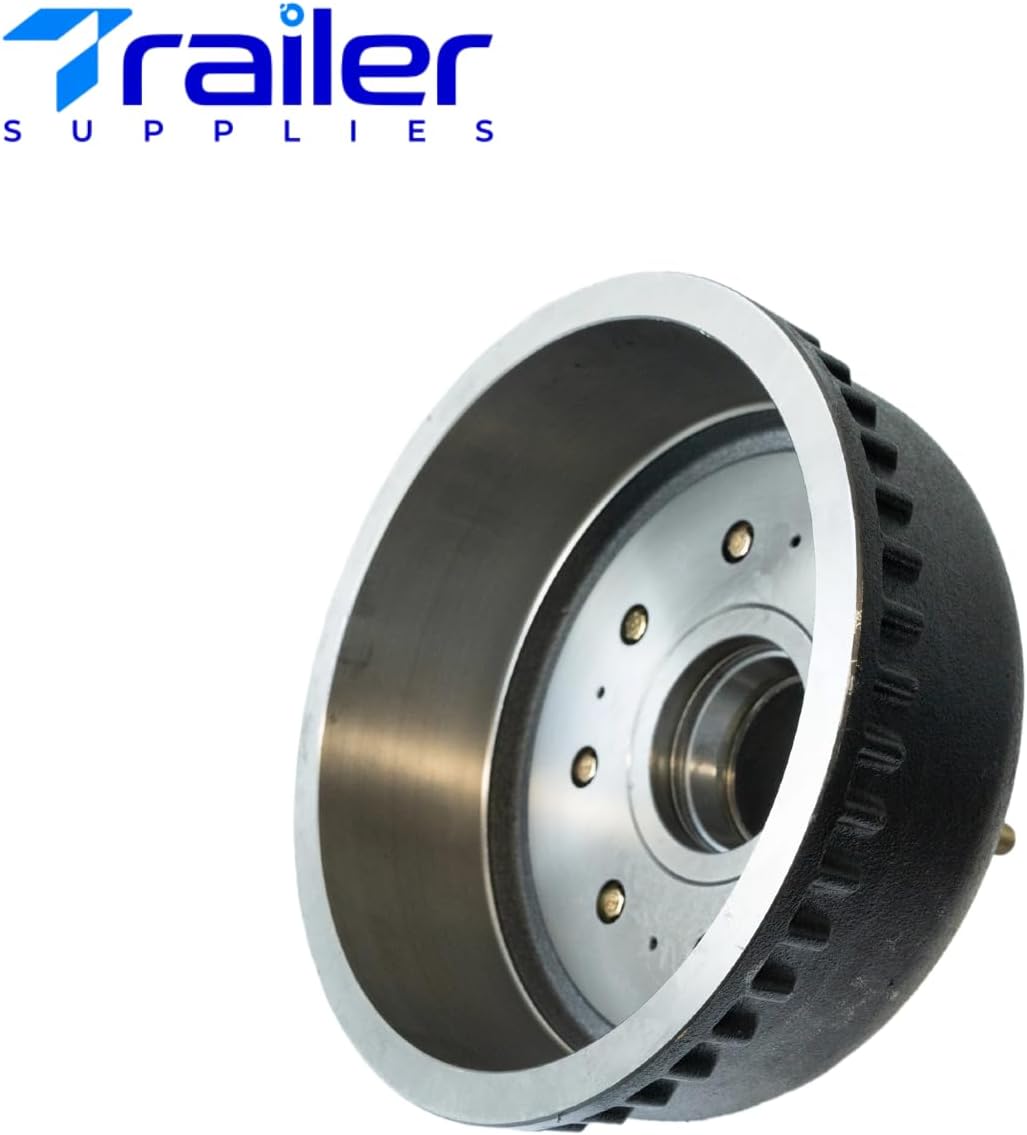

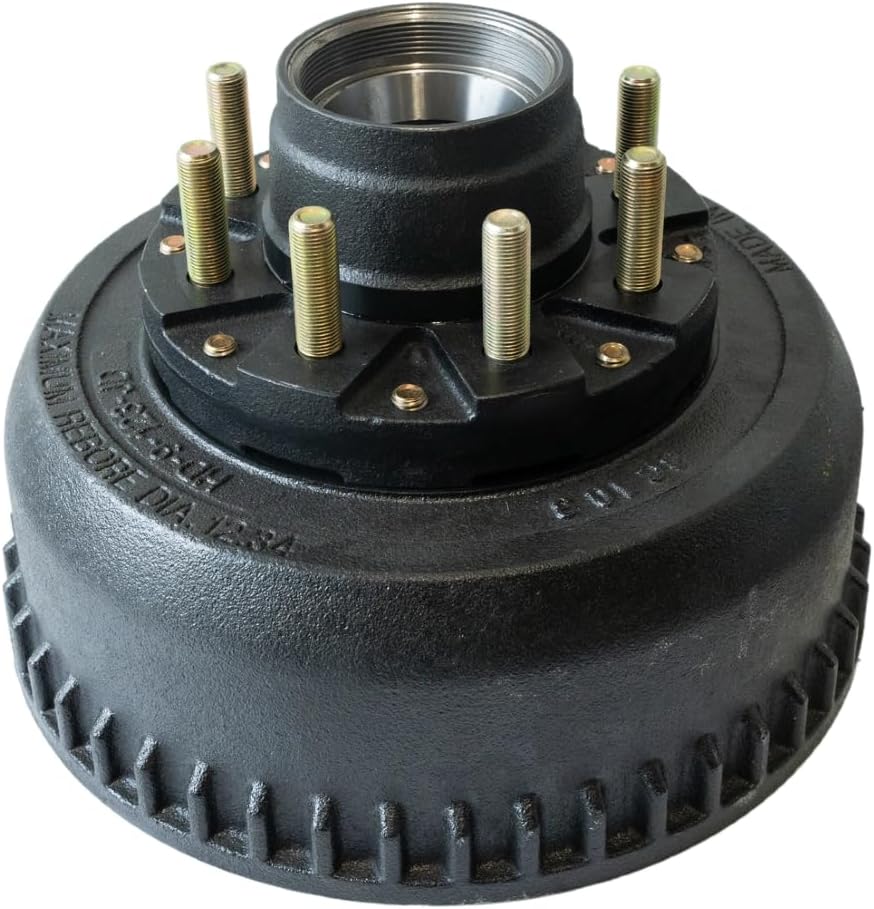

Kit 3 – Hub & Drum Assembly (Dexter 008-430-05 After 2009)
Product Includes
-
(1) Hub & Drum Assembly – 12.25" diameter × 3.375" width, cast iron
-
(8) Wheel Studs – 5/8"-18 thread × 2.50" length (pre-installed), 8 on 6.5" bolt circle
-
(1) Inner Race – #382A (OD 3.265") pre-installed
-
(1) Outer Race – #25520 (OD 3.265") pre-installed
(Bearings #25580 & #387A, oil seal, dust cap, and lug nuts not included)
Key Features
-
Fits Dexter 9K–10K GD Axles (After 2009) – Direct replacement for Dexter hub & drum #008-430-05.
-
OEM Replacement – Replaces older one-piece hub/drum designs like 8-415.
-
Heavy-Duty Design – 8 on 6.5" bolt circle with 5/8"-18 studs for strength.
-
Pre-Assembled Convenience – Inner and outer races pressed in for faster setup.
-
High Capacity – Rated at 5,000 lbs per hub (10,000 lbs per axle).
This hub & drum assembly is a complete replacement for Dexter 9K–10K General Duty axles built after July 2009. Featuring a precision-machined drum with pre-installed races and studs, it reduces installation time while delivering reliable braking performance. Designed for commercial trailers including equipment, livestock, gooseneck, and dump trailers.
