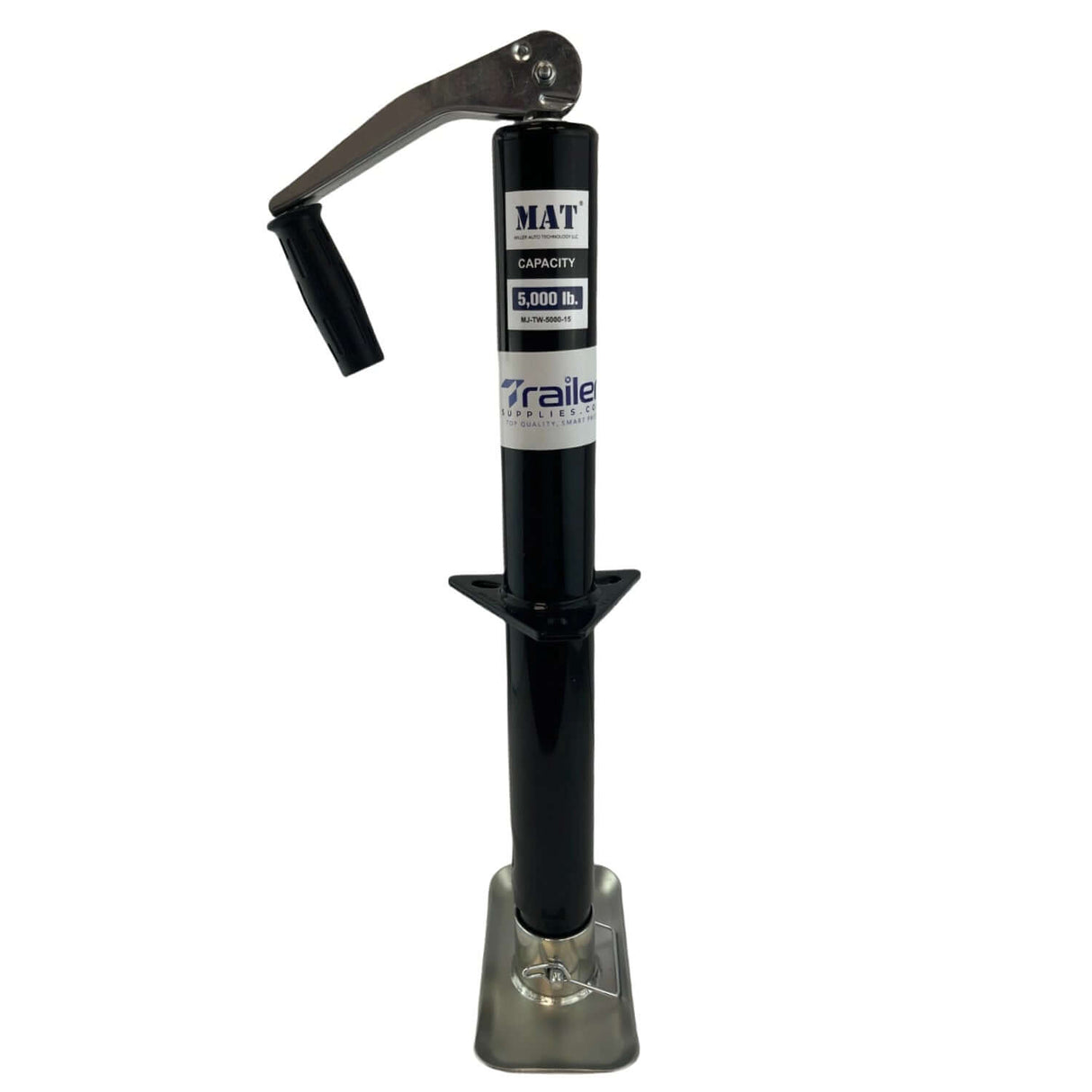

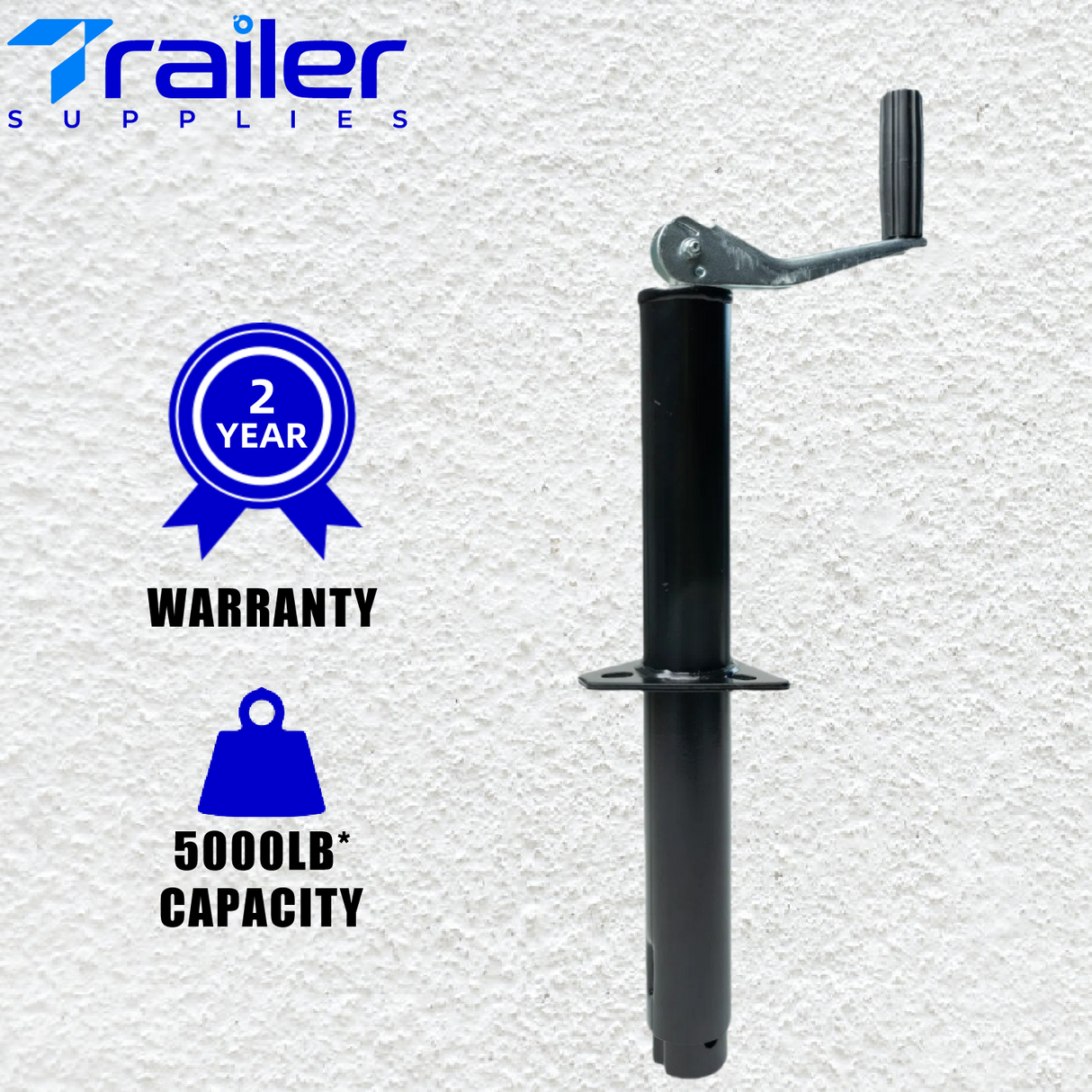

5,000 LBs Capacity,A-Frame Trailer Jack, 15-Inch Vertical Travel, Top-Wind Handle with Foot Plate, Black
5,000 LBs Capacity,A-Frame Trailer Jack, 15-Inch Vertical Travel, Top-Wind Handle with Foot Plate, Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
5,000 LBs Capacity,A-Frame Trailer Jack, 15-Inch Vertical Travel, ...
Product Description:
Engineered for strength and dependable performance , this TRAILER SUPPLIES 5,000 lb A-Frame Tongue Jack provides stable lifting and secure trailer support for a wide range of towing applications. Designed to fit standard A-frame trailer couplers, this jack simplifies hitching, unhitching, and trailer leveling with a generous 15" lift range that helps accommodate uneven ground and varying vehicle heights.
The durable topwind crank handle allows smooth, controlled operation during raising and lowering, while the rugged steel construction and corrosion-resistant finish ensure long service life in demanding outdoor environments. A galvanized foot plate is included to improve ground contact and stability on gravel, dirt, or grass surfaces, helping prevent sinking under load.
Ideal for utility trailers, equipment haulers, campers, livestock trailers, and flatbeds, this jack supports both bolt-on and weld-on installation, making it a versatile replacement or upgrade for heavy duty A-frame trailer setups.
Built to handle up to 5,000 lbs of static capacity and 3,000 lbs of lifting capacity, it delivers reliable support, easy operation, and long term durability for everyday towing needs.
Specifications:
Capacity: 5,000 lb static support / 3,000 lb lift capacity
Travel: 15" vertical lift
Retracted Height (A): 10.5"
Extended Height (B): 25.5"
Clearance (C): 11.5"
Finish: Durable exterior black powder coat
Handle Finish: Zinc-plated topwind handle with textured grip
Foot Plate: Galvanized steel, included
Mounting: Bolt-on or weld-on for A-frame couplers
