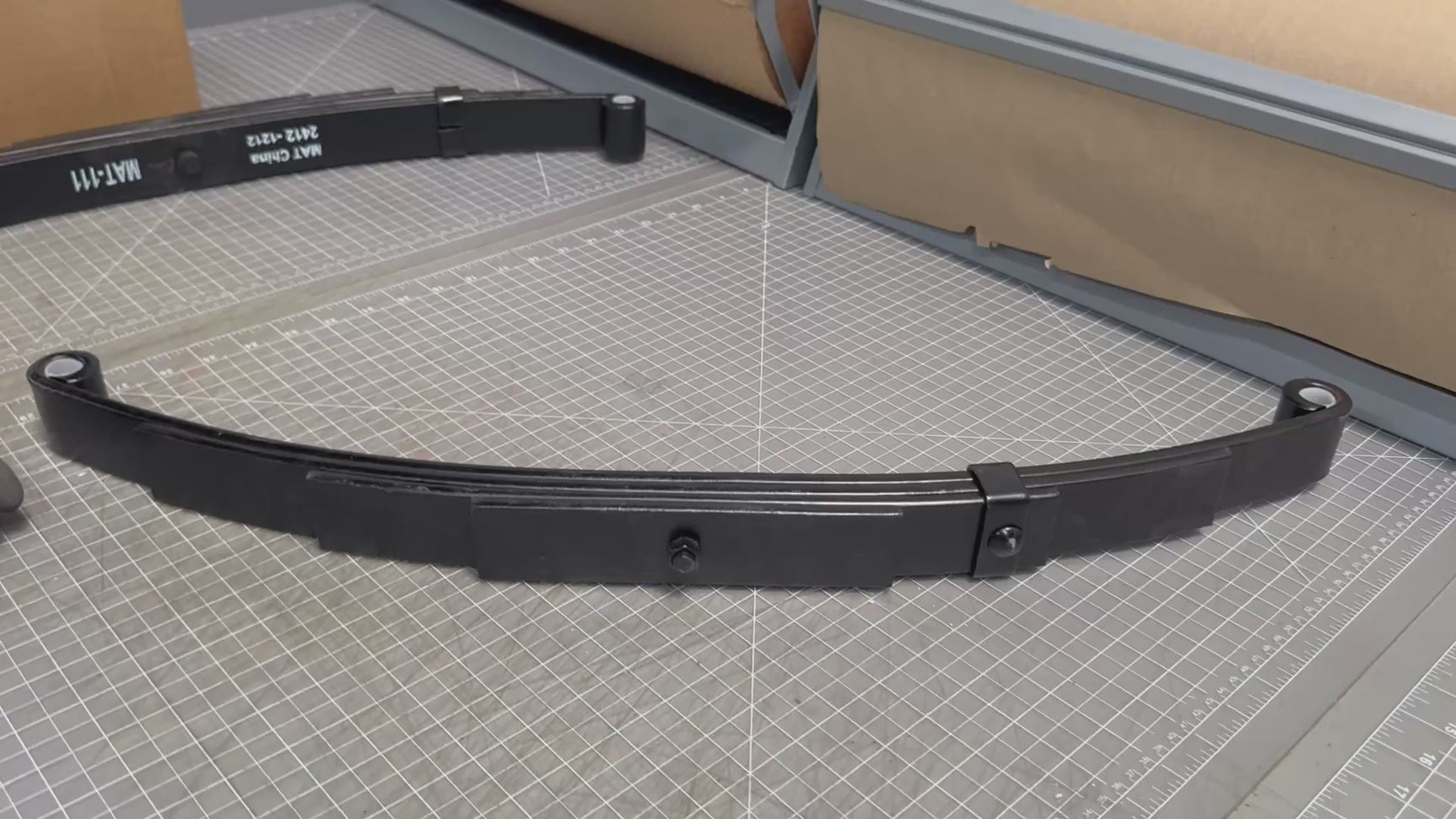

3,500 lb Axles 25.25" 4-Leaf Double Eye Trailer Springs 1-3/4" Wide
3,500 lb Axles 25.25" 4-Leaf Double Eye Trailer Springs 1-3/4" Wide - 1 Pair is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
3,500 lb Axles 25.25" 4-Leaf Double Eye Trailer Springs 1-3/4&...
Perfect for suspension upgrades or replacements on trailers with 3,500 lb axles. Suitable for single or tandem axle setups on utility, boat, cargo, and livestock trailers.

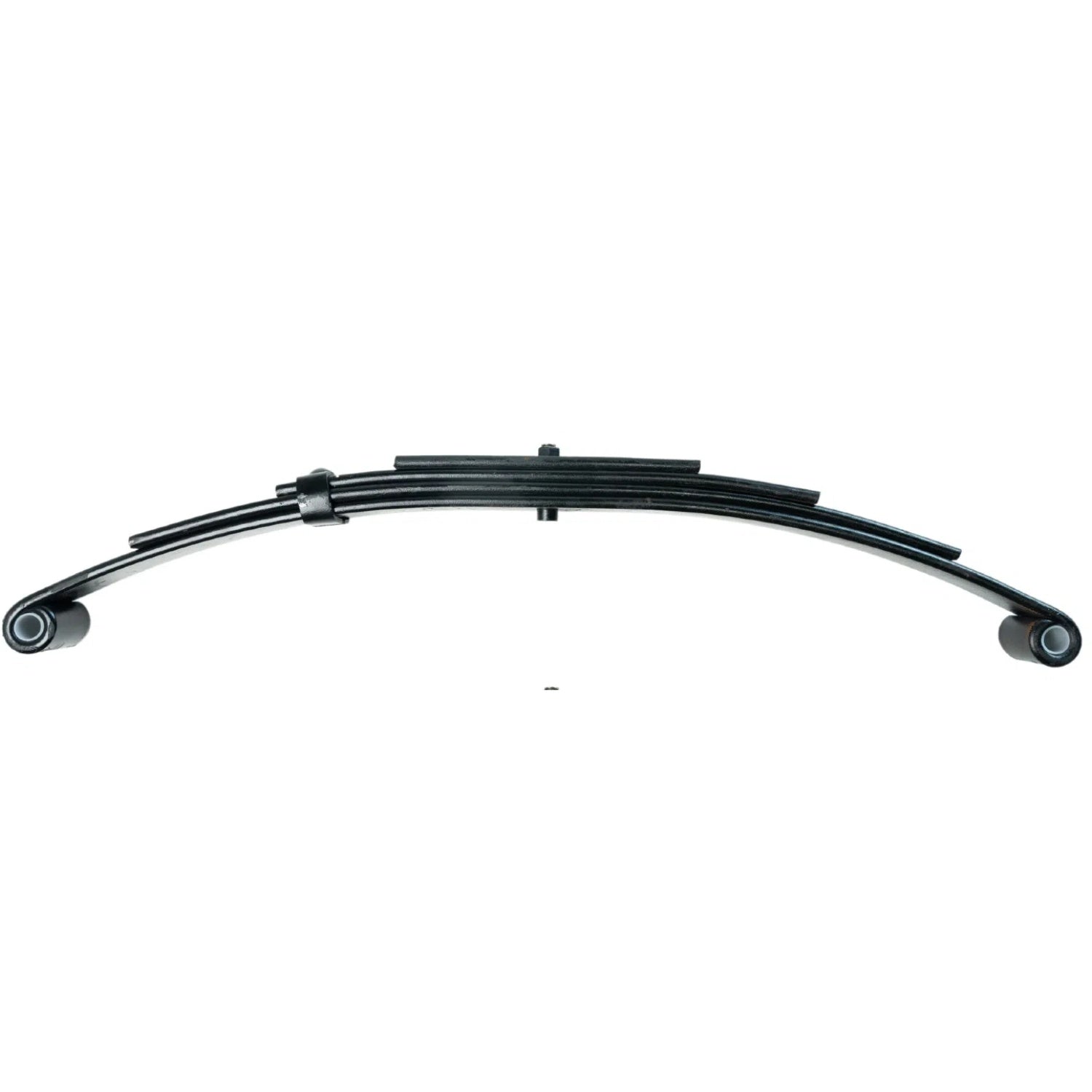

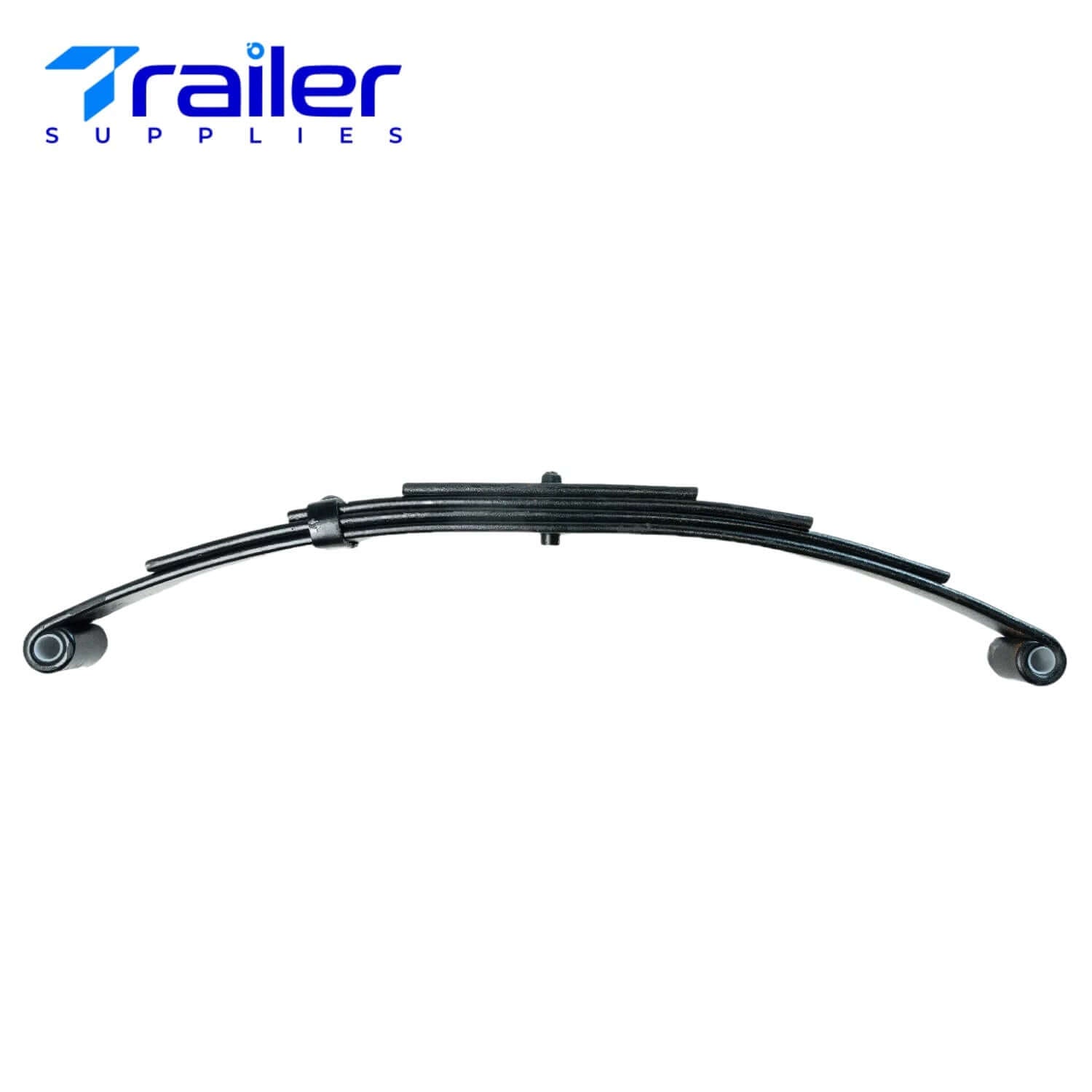

【One Spring】
-
(1) 4-leaf double eye trailer spring (1,750 lb)
-
Pre-installed nylon bushing

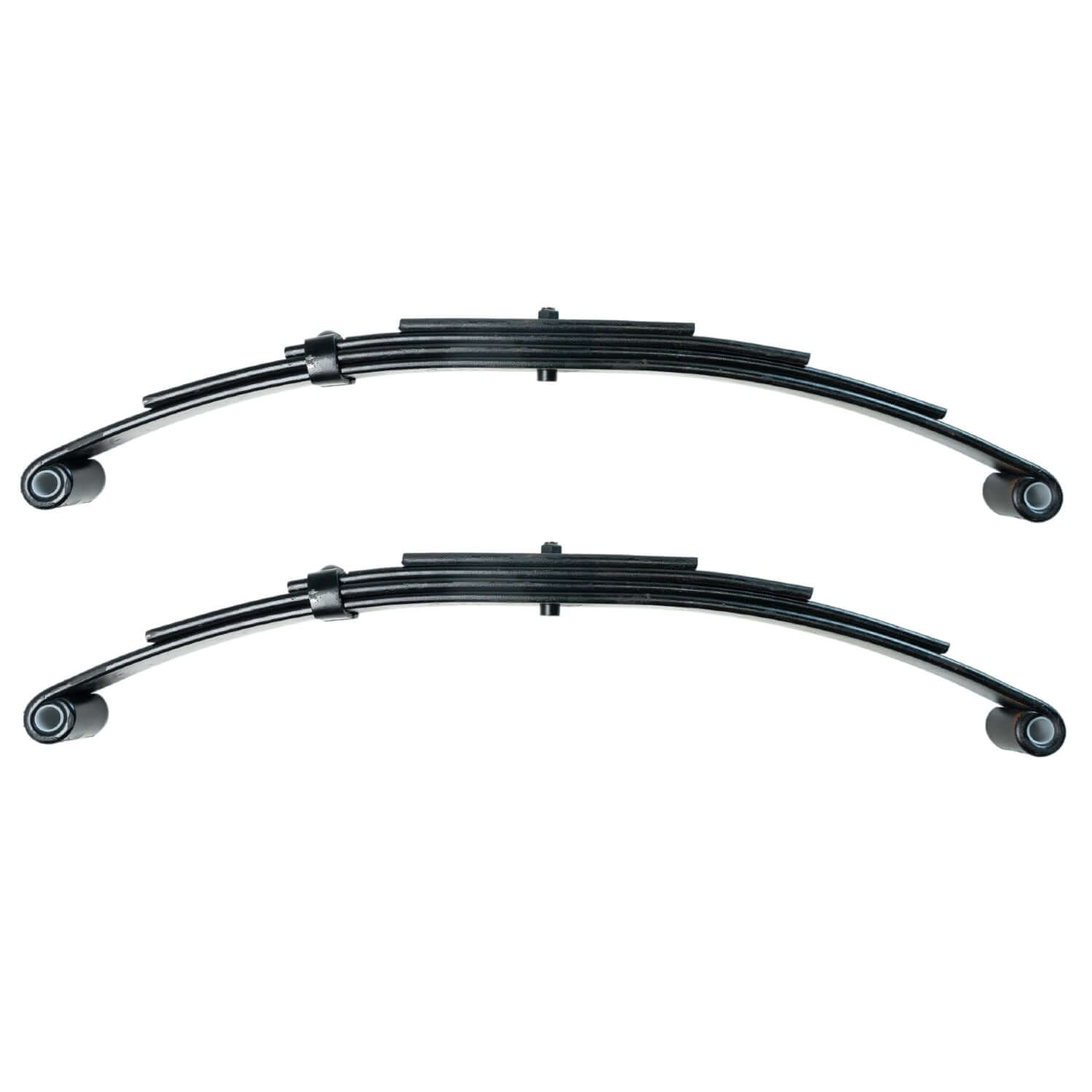

【1 Pair】
- (2) 4-leaf double eye trailer springs (1,750 lb each)
- Pre-installed nylon bushings
【2 Pair】
- (4) 4-leaf double eye trailer springs (1,750 lb each)
- Pre-installed nylon bushings

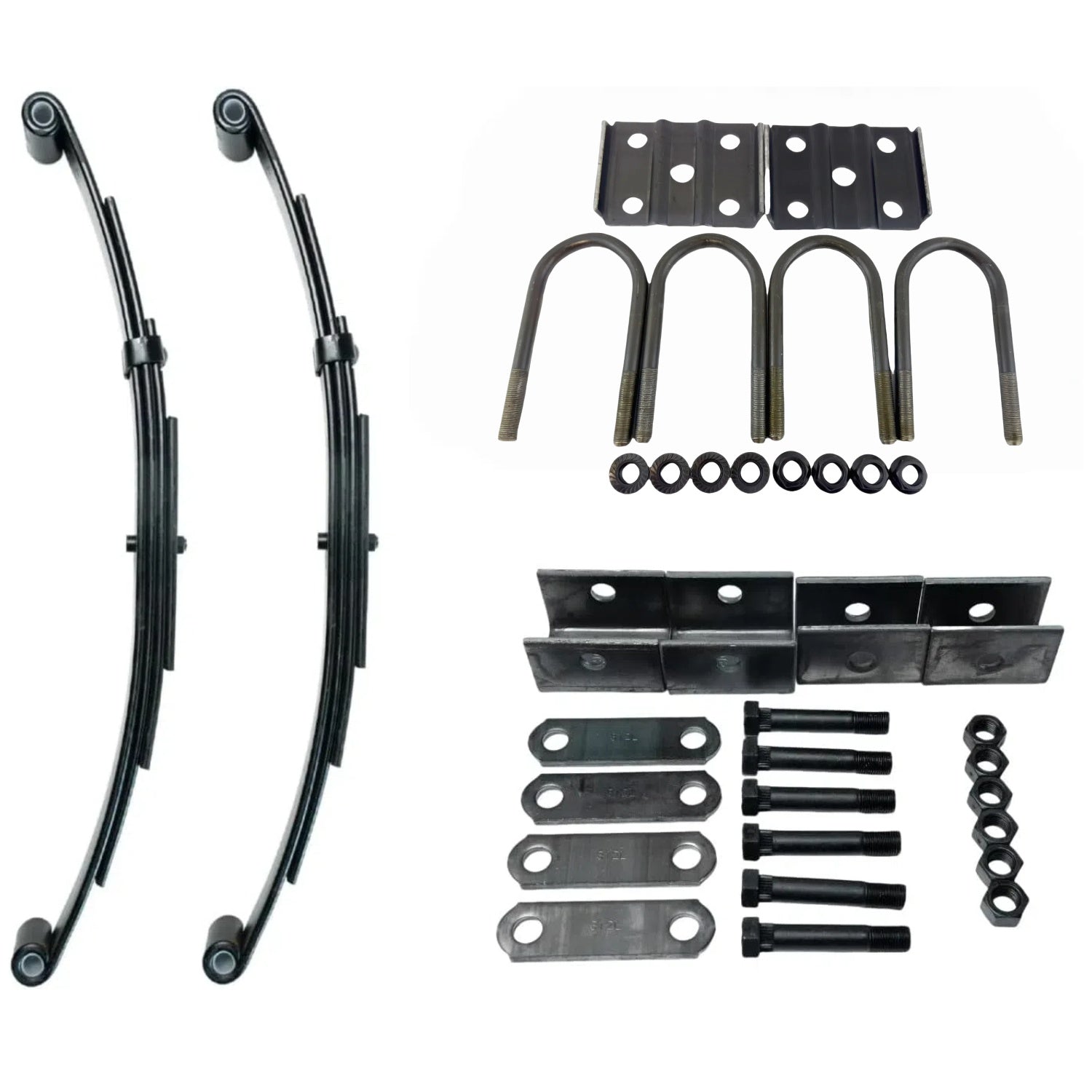

【1 Pair + 1 U-Bolt Kit + Hanger Kit】
- (2) 4-leaf double eye springs
- (4) U-bolts – 5.5", for 2-3/8" axle, 1/2"-20 thread
- (2) Tie plates
- (8) Lock nuts
- (2) Front hangers (1-1/2")
- (2) Rear hangers (7/8")
- (4) Shackle straps – 2-5/8" (9/16" holes)
- (6) Shackle bolts – 3" × 9/16"
- (6) Lock nuts

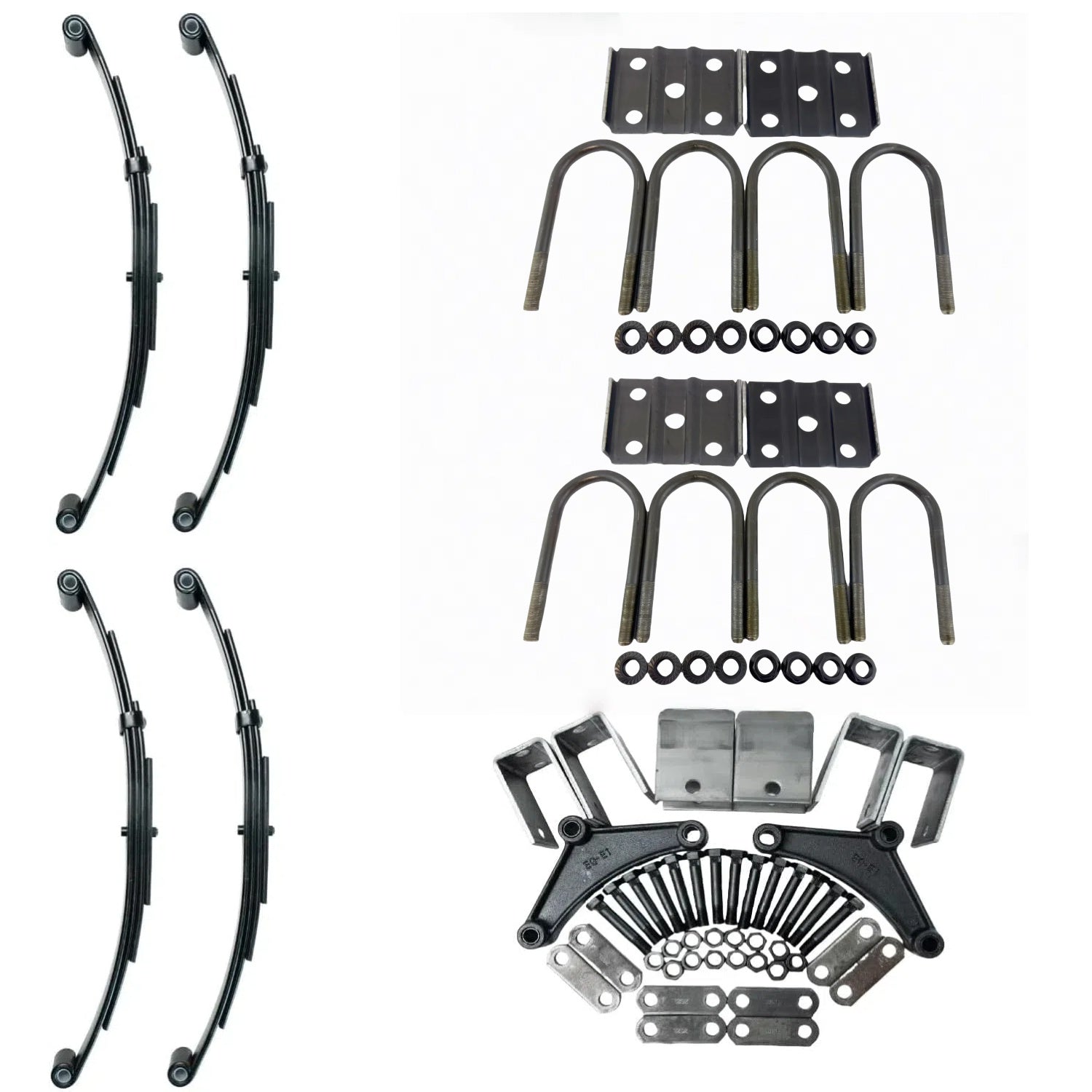

【2 Pair + 2 U-Bolt Kit + Hanger Kit】
- (4) 4-leaf double eye springs
- (8) U-bolts + (4) tie plates
- (6) Hangers (2 front, 2 rear, 2 center)
- (2) Equalizers – 7-3/4"
- (8) Shackle straps
- (14) Bolts
- (14) Lock nuts

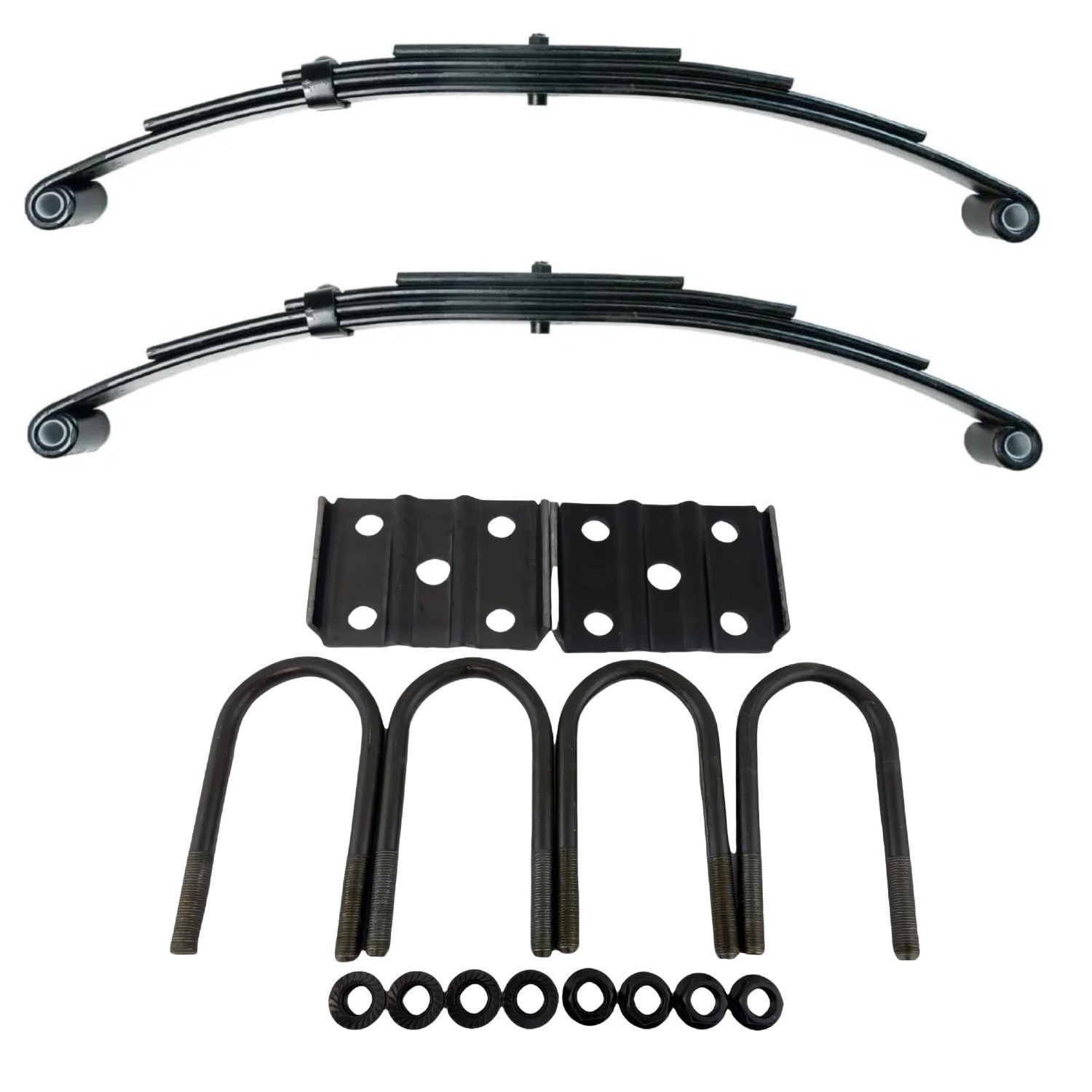

【1 Pair + 1 U-Bolt Kit】
- (2) 4-leaf double eye springs
- (4) U-bolts – 5.5", for 2-3/8" axle, 1/2"-20 thread
- (2) Tie plates
- (8) Lock nuts
Key Features
- Built for 3,500 lb Axles – Each spring rated at 1,750 lbs for a total capacity of 3,500 lbs per axle.
- Heavy-Duty Steel Construction – Made from 60Si2Mn manganese steel, heat-treated for strength, and finished with corrosion-resistant coating.
- OEM Compatibility – Direct replacement for SW4B, LIB-401-DE, 124903, PR4B.

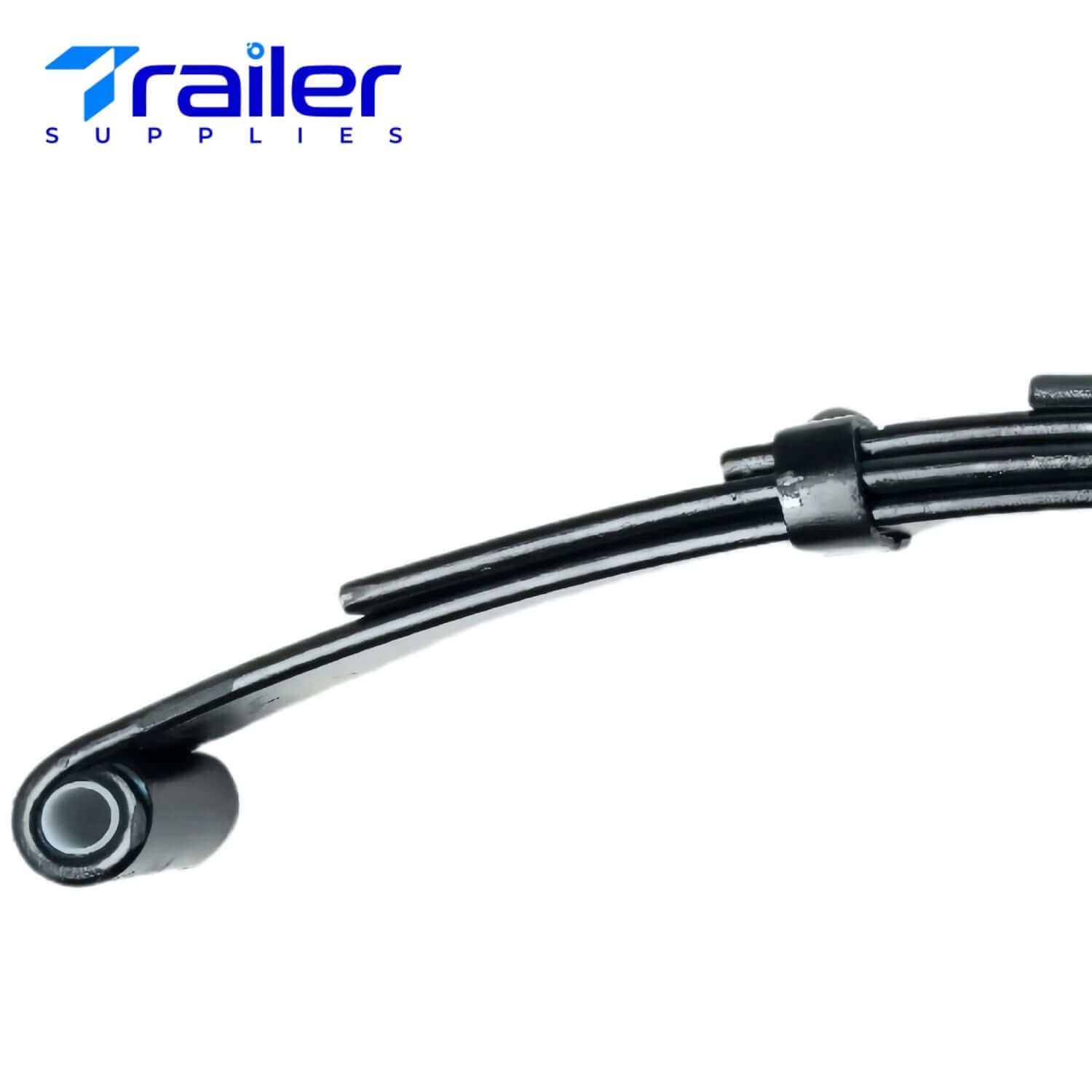

- Smooth Ride – Double-eye design for stable, balanced suspension when paired with standard hangers.
- Multiple Kit Options – Available as springs only, with U-bolt kits, or with complete hanger kits for full suspension replacement.
OEM & Compatibility
- Replaces: SW4B, LIB-401-DE, 124903, PR4B, A226, K71-403-00
Fits: Standard 3,500 lb axles with 1-3/4" wide double eye leaf springs
- Axle Types: Utility, boat, cargo, and livestock trailers
