3,500 lb Axles 10" x 2-1/4" Brake Drum & Hub Kit – 5 on 4.5" Bolt Pattern
3,500 lb Axles 10" x 2-1/4" Brake Drum & Hub Kit – 5 on 4.5" Bolt Pattern is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
3,500 lb Axles 10" x 2-1/4" Brake Drum & Hub Kit – 5...

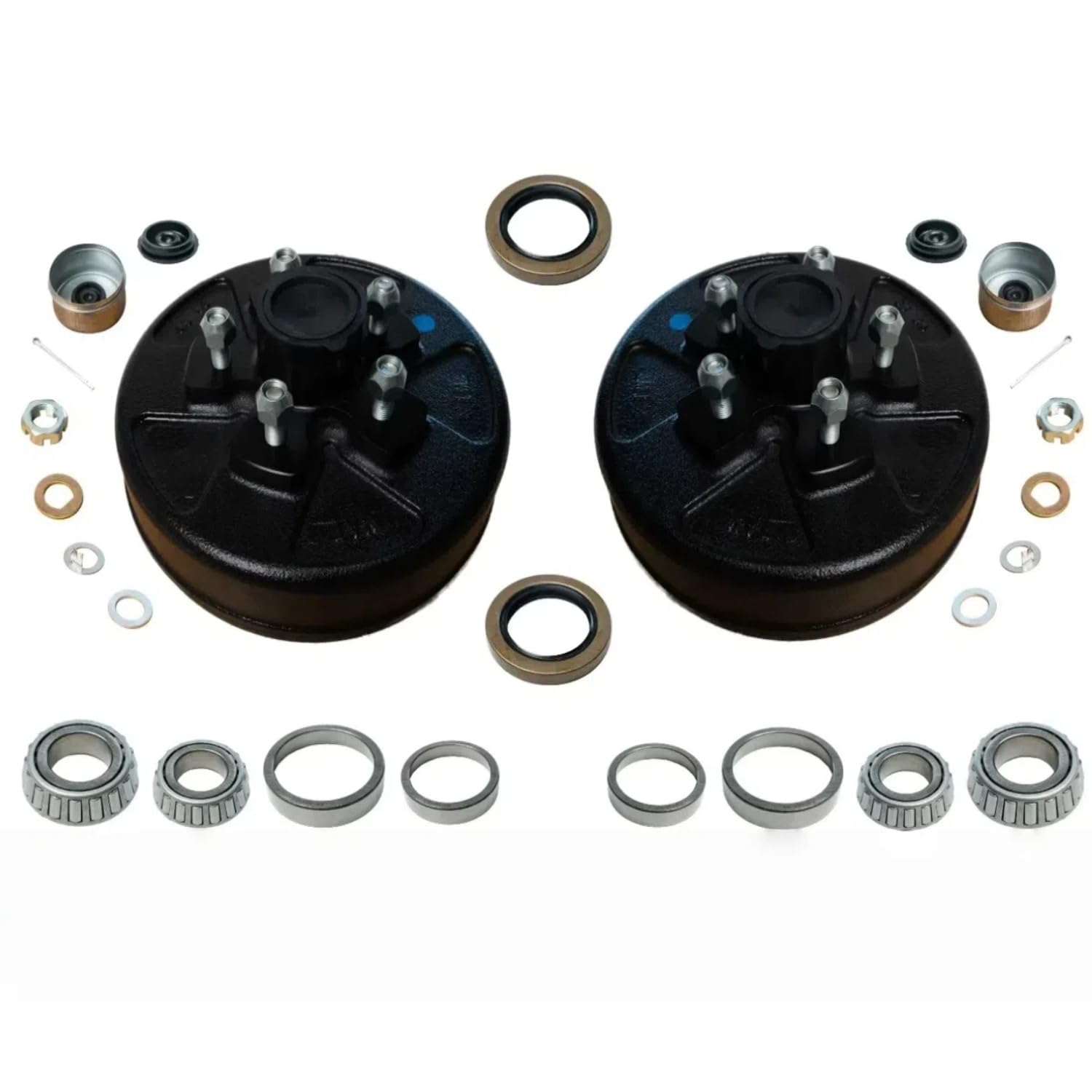

Comes with two trailer brake drum hubs featuring a 5 on 4.5" bolt pattern for 3,500 lb axles. Each hub/drum is pre-installed with the inner bearing L68149 (1.378" I.D.), grease seal 10-19 (1.719" I.D. × 2.565" O.D.), and wheel studs. The kit also includes the outer bearing L44649 (1.063" I.D.), E-Z Lube dust caps (1.98" O.D.) with rubber plugs, and all the hardware shown: castle nuts, flat washers, tang washers, and cotter pins—providing everything you need for a fast, reliable replacement.
Kit Includes (Per Hub):

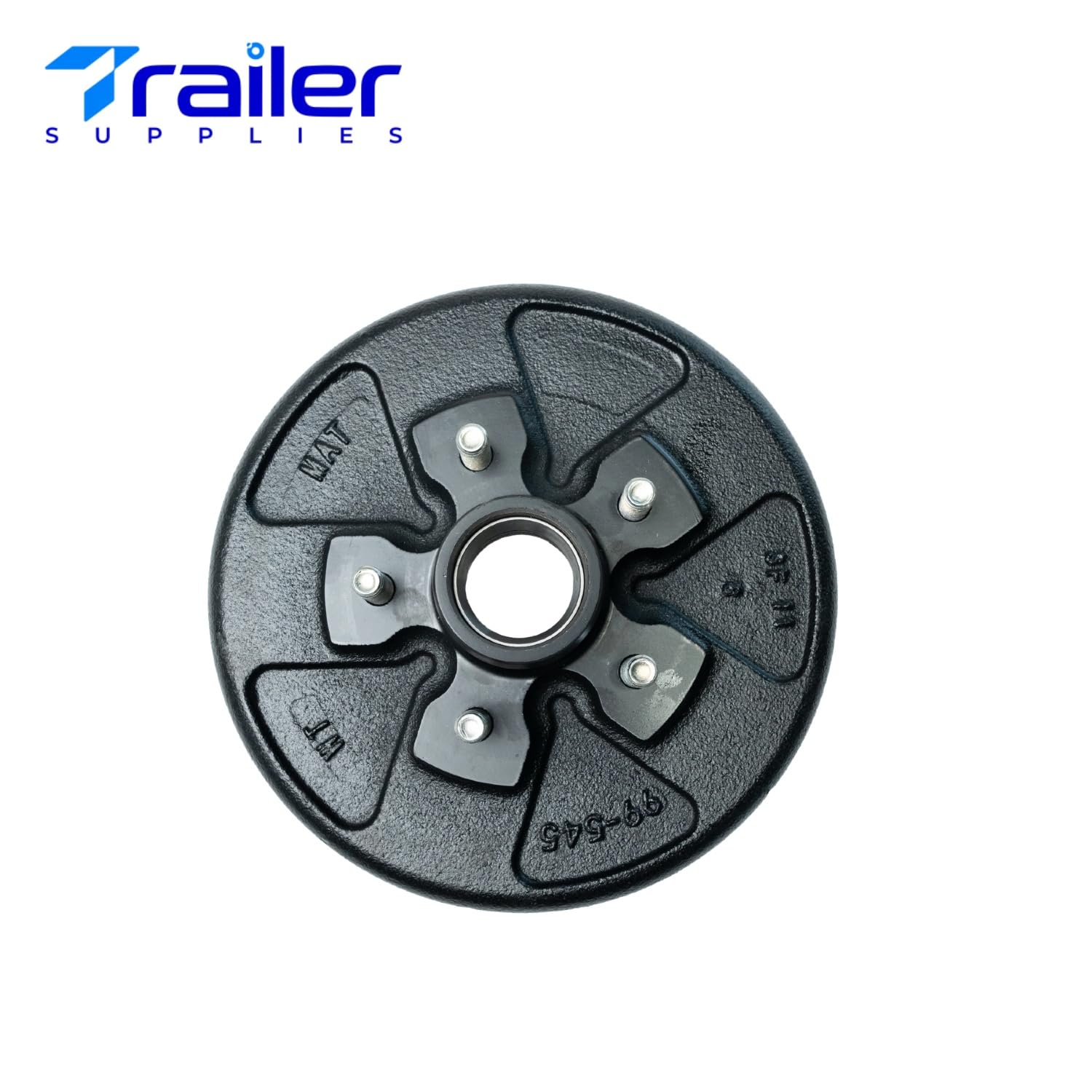

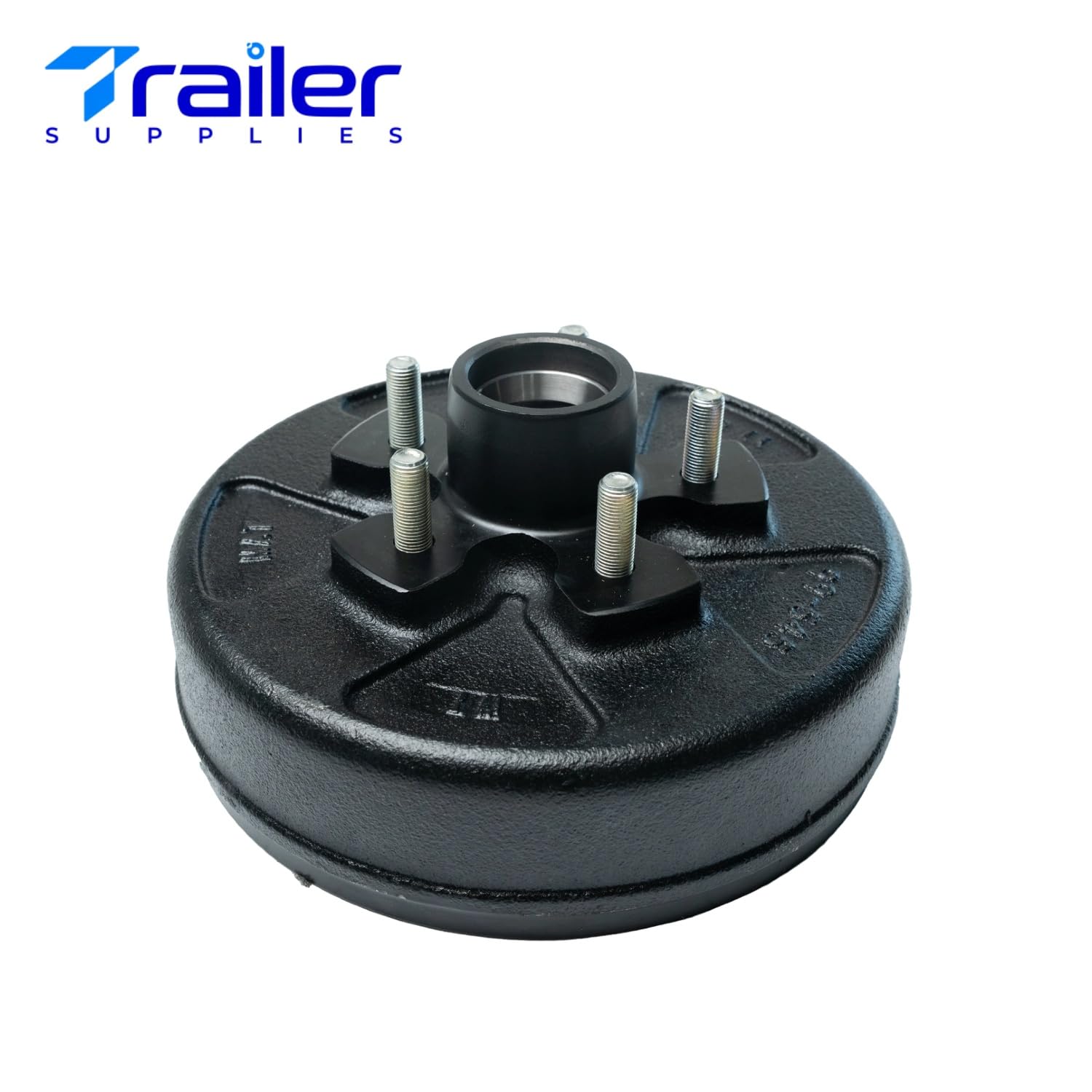

- (1) Hub/Drum – 5 on 4.5" Bolt Pattern, 3,500 lb Capacity
- (1) Inner Bearing – L68149 (1.378" I.D., pre-installed)
- (1) Outer Bearing – L44649 (1.063" I.D.)
- (1) Grease Seal – 10-19 (1.719" I.D. × 2.565" O.D., pre-installed)
- (1) E-Z Lube Dust Cap – 1.98" O.D. with Rubber Plug
- (1) Castle Nut
- (1) Flat Washer
- (1) D Washer
- (1) Tang Washer
- (1) Cotter Pin
Key Features:
- Fits 3,500 lb trailer axles with standard #84 spindles
- Works with 10" x 2-1/4" electric or hydraulic drum brakes
- Pre-installed bearing and grease seal for quick installation
- High-strength cast construction for long service life
- Complete hardware set included for a secure fit
