3,500 lb Axles,10"x2-1/4" Self-Adjusting Electric Brake Assemblies,4-Bolt Mount
3,500 lb Axles,10"x2-1/4" Self-Adjusting Electric Brake Assemblies,4-Bolt Mount - 1 PAIR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
3,500 lb Axles,10"x2-1/4" Self-Adjusting Electric Brake A...
Specs:
- Brake Size: 10" x 2-1/4"
- Axle Rating: 3,500 lb
- Mount Type: 4-Bolt Brake Flange
- Brake Type: Self-Adjusting Electric
- Position: Left-Hand (LH) & Right-Hand (RH)
- Compatible Drum: 10" x 2-1/4"
- OEM Replacement: Dexter K23-468-00 (LH), K23-469-00 (RH)
- Fits: Dexter, Lippert, AL-KO, AxleTek 3.5K Axles
Kit Includes:

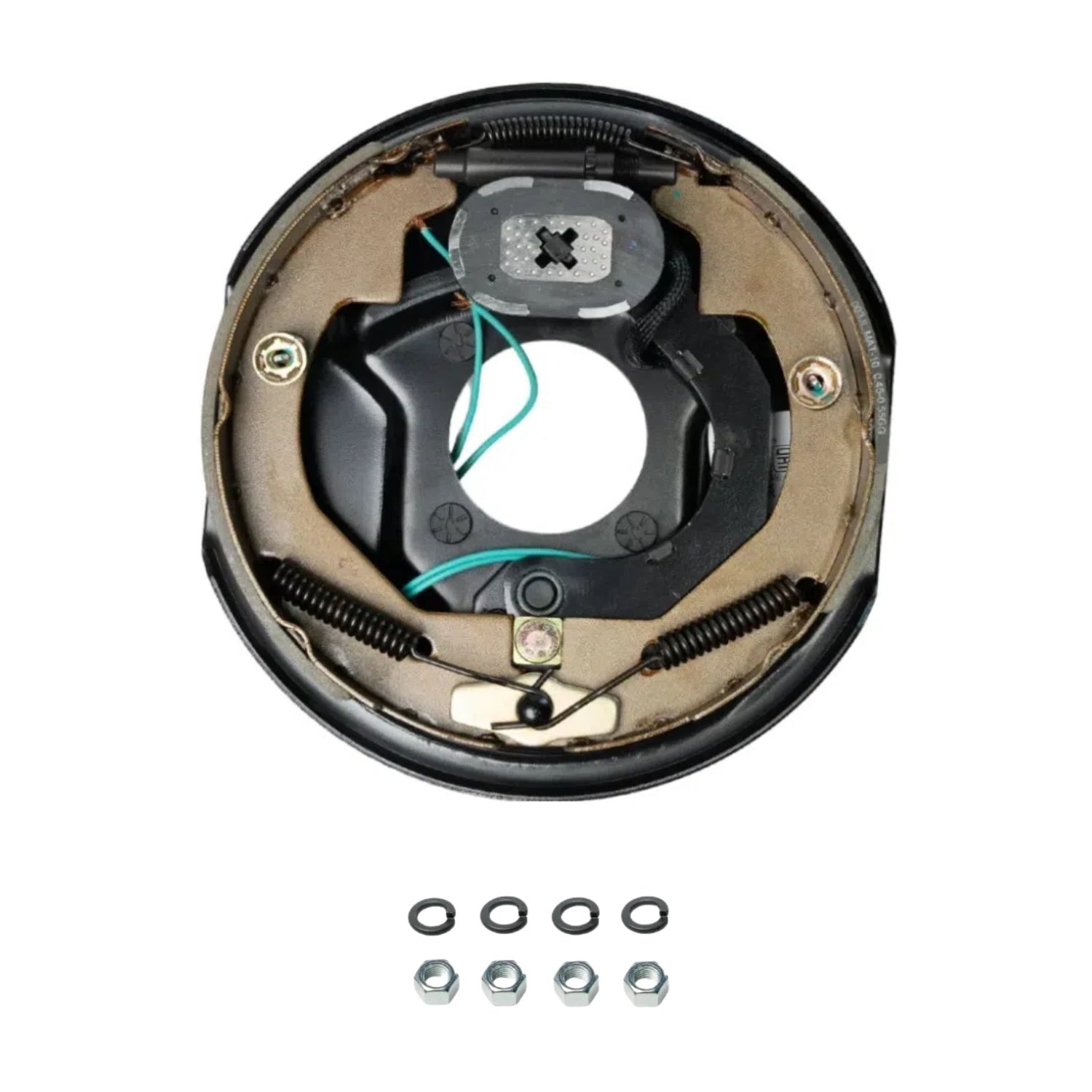

Left Hand (LH) Only
-
1 × LH 10"x2-1/4" Self-Adjusting Electric Brake Assembly
-
Pre-installed brake shoes, magnet, return springs, and backing plate
-
Fits standard 4-bolt brake flange (hardware not included)

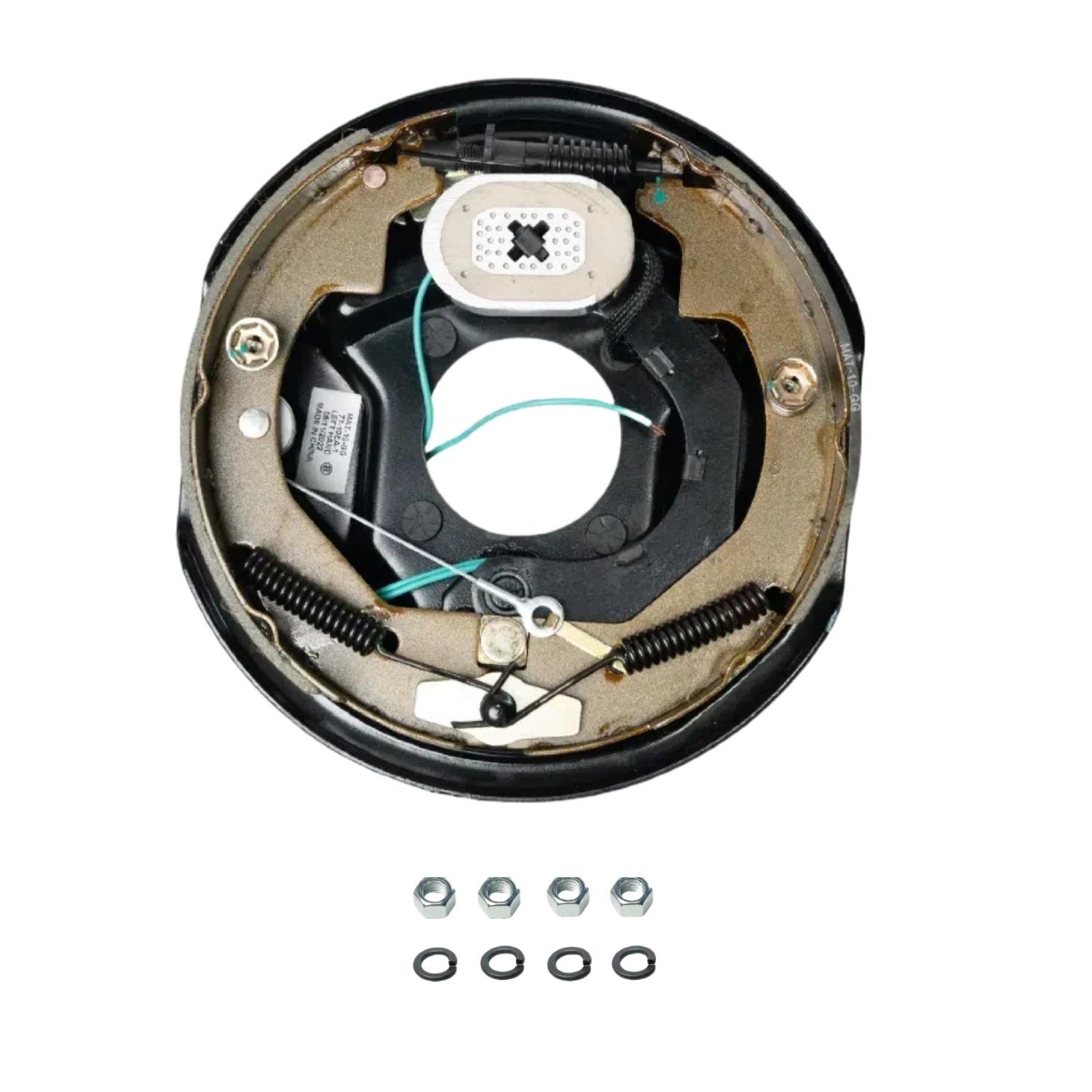

Right Hand (RH) Only
-
1 × RH 10"x2-1/4" Self-Adjusting Electric Brake Assembly
-
Pre-installed brake shoes, magnet, return springs, and backing plate
-
Fits standard 4-bolt brake flange (hardware not included)

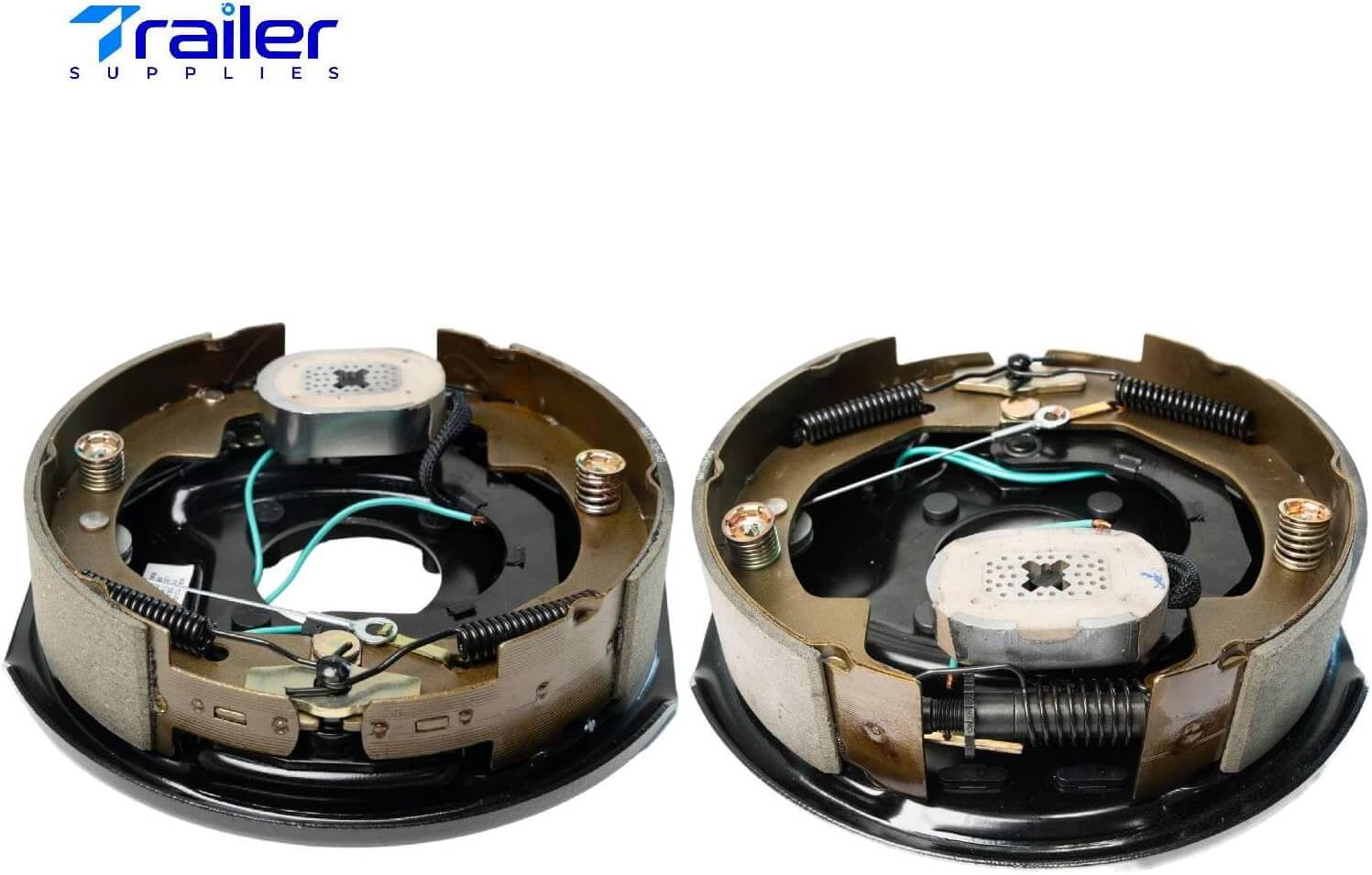

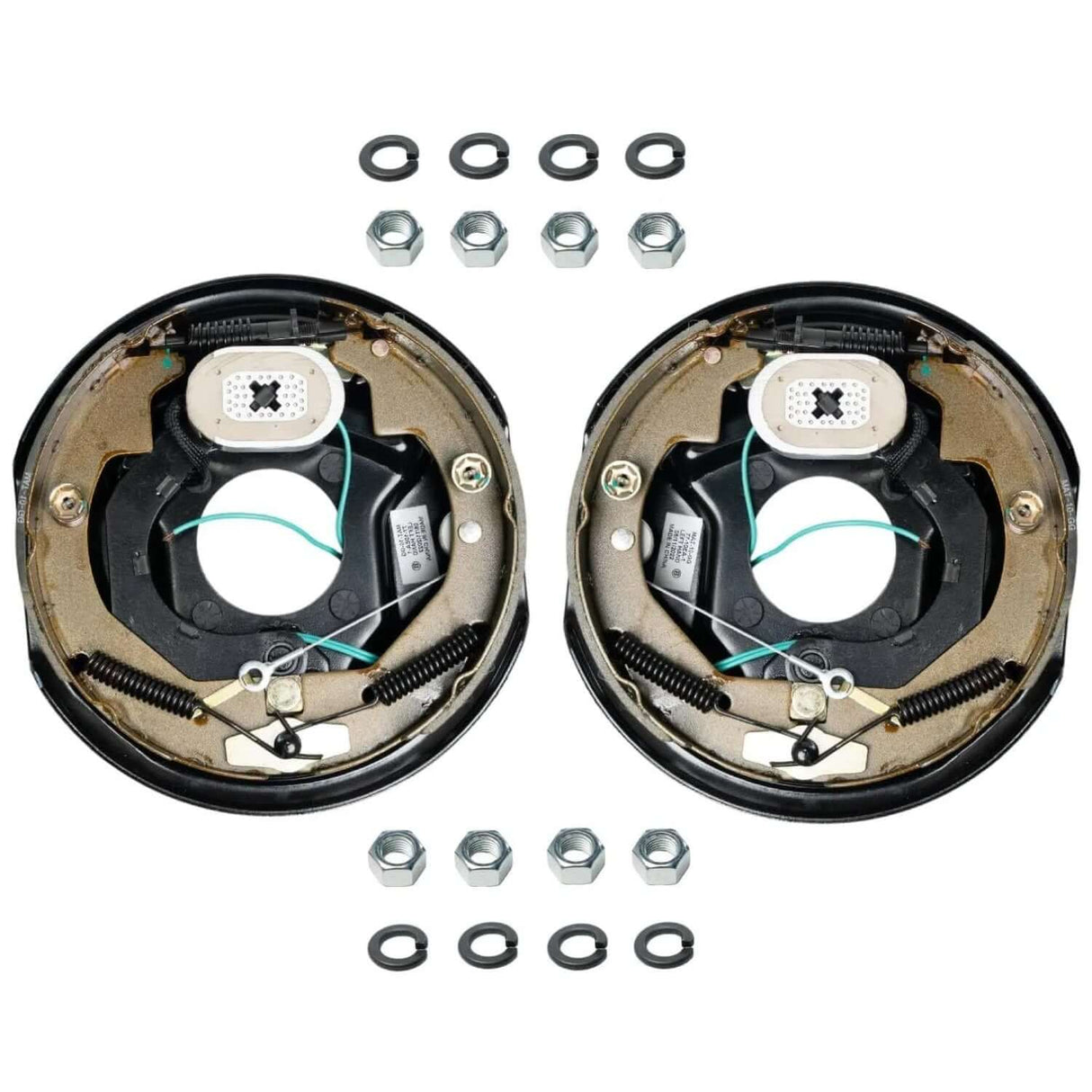

1 Pair (LH + RH Brakes)
- 1 × LH 10"x2-1/4" Self-Adjusting Electric Brake Assembly
- 1 × RH 10"x2-1/4" Self-Adjusting Electric Brake Assembly
- Pre-installed brake shoes, magnets, return springs, and backing plate
- Fits standard 4-bolt brake flange (hardware not included)

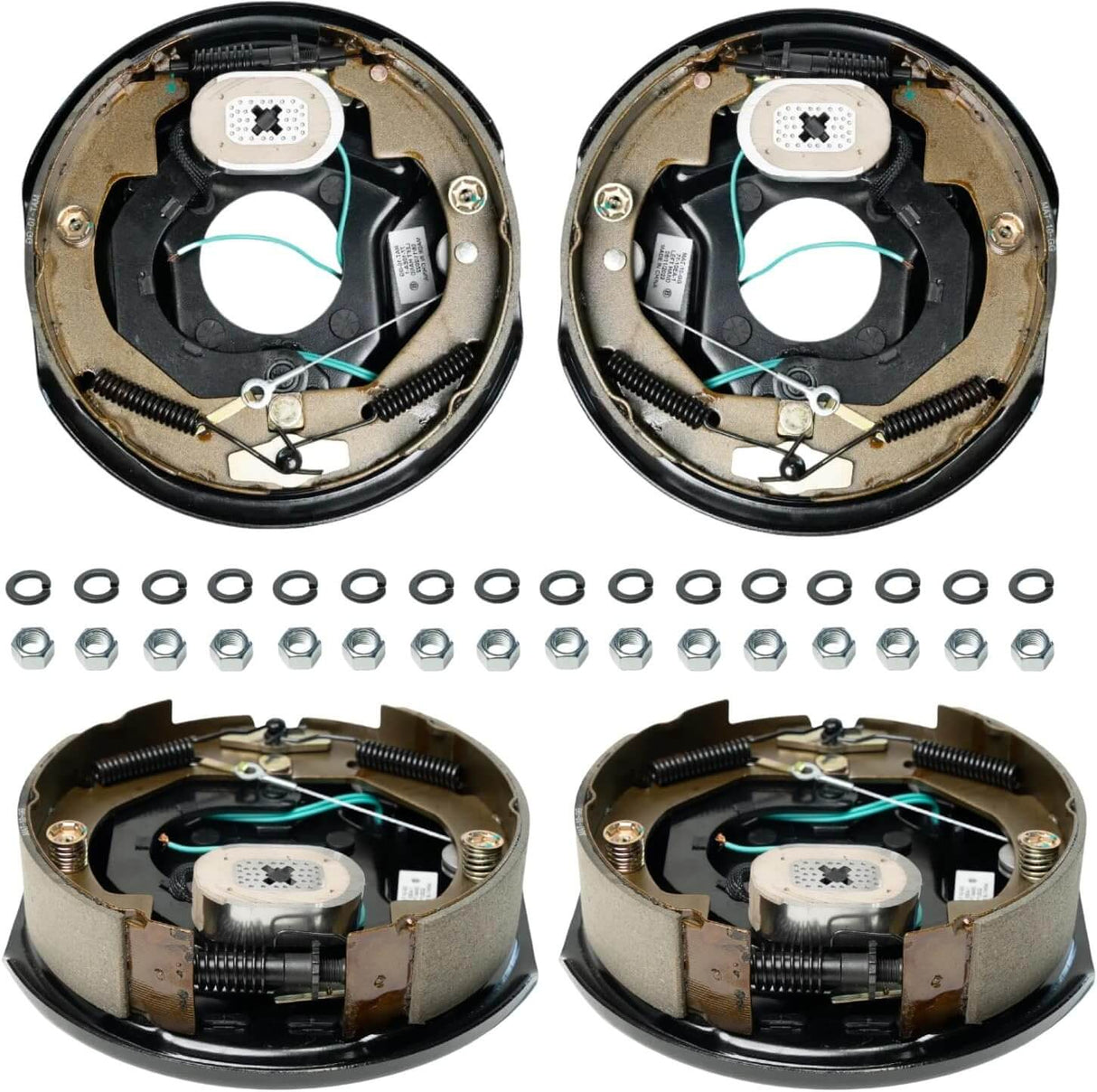

2 Pairs (2 LH + 2 RH Brakes)
- 2 × LH 10"x2-1/4" Self-Adjusting Electric Brake Assemblies
- 2 × RH 10"x2-1/4" Self-Adjusting Electric Brake Assemblies
- Pre-wired, fully assembled, ready to bolt on (hardware not included)

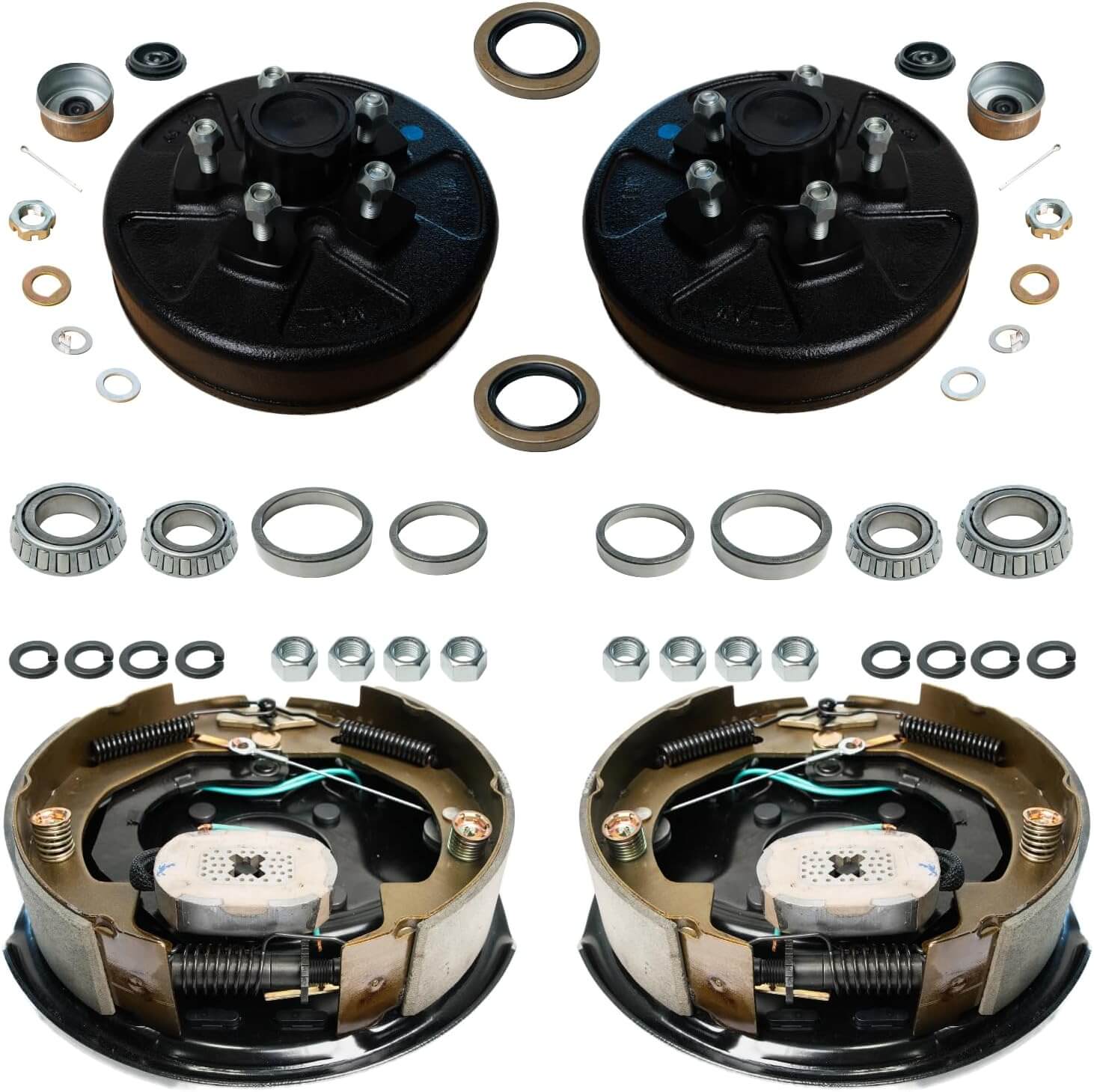

1 Pair Brake & Drum Kit (LH + RH)
- 1 × LH 10"x2-1/4" Self-Adjusting Electric Brake Assembly
- 1 × RH 10"x2-1/4" Self-Adjusting Electric Brake Assembly
- 2 × 5-Lug Hub Drums – 5 on 4.5" bolt pattern
- 2 × Inner Bearings – L68149 (1.377" ID × 2.164" OD)
- 2 × Outer Bearings – L44649 (1.062" ID × 2.058" OD)
- 2 × Grease Seals – 1.718" ID × 2.56" OD
- 2 × Dust Caps – 1.988" mounting diameter
- 4 × Rubber Plugs (for dust caps)
- 10 × Hub Nuts

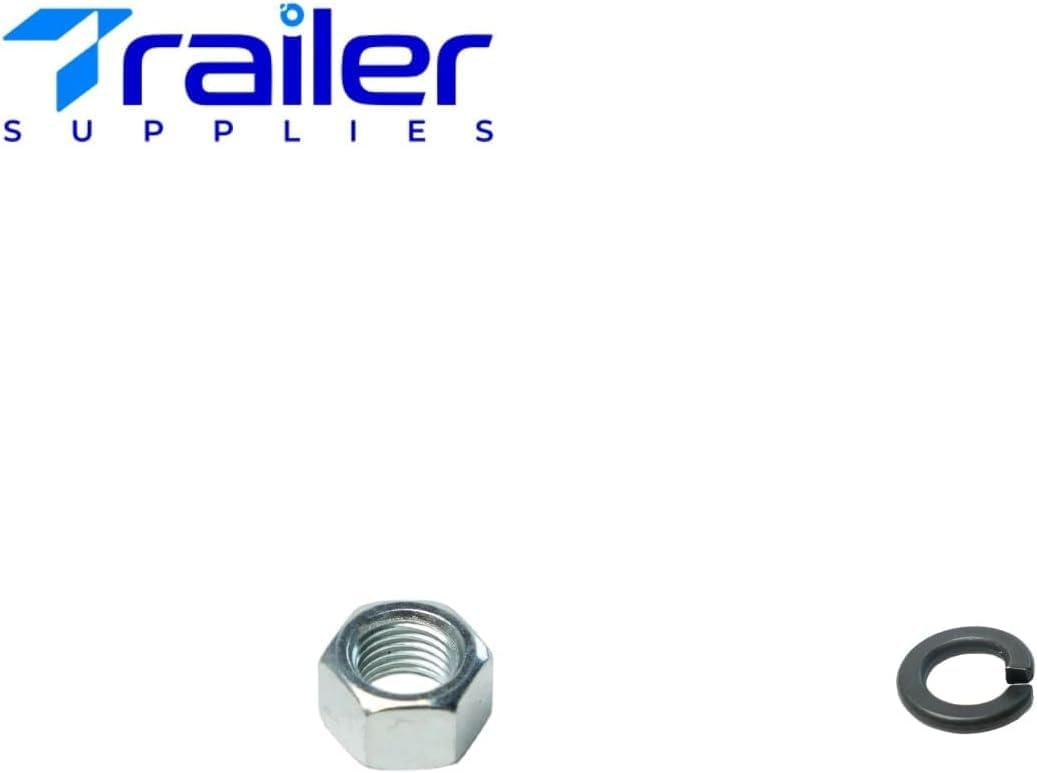

- 8 × Mounting Nuts (7/16-20 UNF)
- 8 × Spring Washers
- 2 × Castle Nuts
- 2 × Flat Washers
- 2 × Cotter Pins
Features:
- Automatic self-adjustment maintains optimal brake shoe clearance, reducing maintenance needs.
- Fits standard 10"x2-1/4" drum hubs on 3,500 lb trailer axles.
- Pre-installed shoes, magnets, and springs for faster installation.
- Compatible with both Dexter and aftermarket 3.5K axle brands (Lippert, AL-KO, AxleTek).
- Meets or exceeds OEM specifications for reliable braking performance.
OEM Replacement:
- Dexter K23-468-00 (LH)
- Dexter K23-469-00 (RH)
