12" x 2" Brake Drum Kit for 5,200–6,000 lb Axles – 6 on 5.5"
12" x 2" Brake Drum Kit for 5,200–6,000 lb Axles – 6 on 5.5" - 1 Pack is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
12" x 2" Brake Drum Kit for 5,200–6,000 lb Axles – 6 on 5...
Upgrade or replace your trailer hub with this 12" x 2" Brake Drum Kit from Trailer Supplies, engineered for 5,200–6,000 lb trailer axles. This single hub and drum assembly features a 6 on 5.5" bolt pattern and comes fully equipped with pre-installed bearings and races for fast, reliable installation. Compatible with both electric and hydraulic brakes, it directly replaces Dexter part numbers 008-201-09 and 42656.

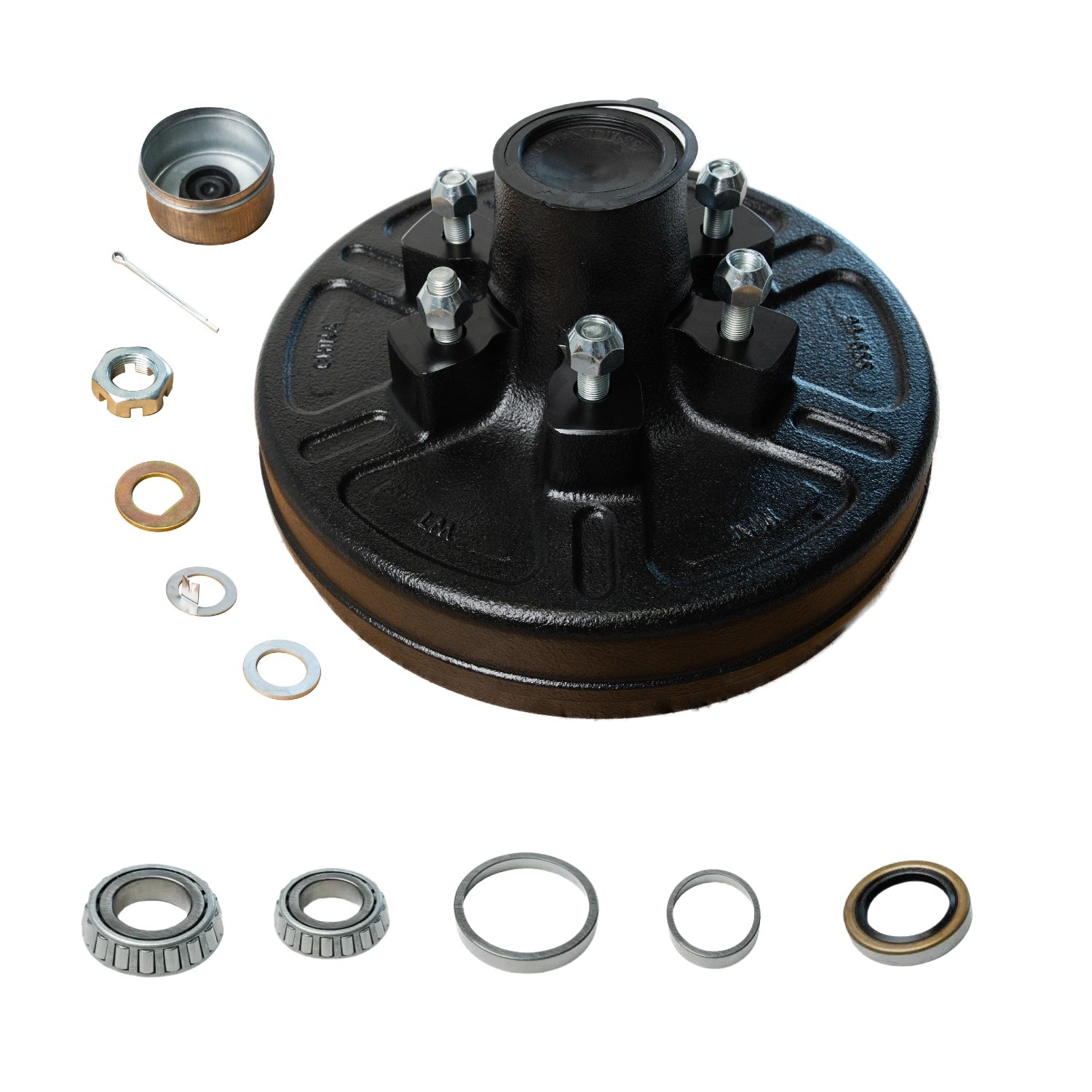

1 Pack Kit Includes:
-
(1) 12" x 2" Hub/Drum Assembly – 6 on 5.5" Bolt Pattern
-
(1) 25580 Inner Bearing – 1.750" ID (Pre-Installed)
-
(1) 15123 Outer Bearing – 1.250" ID (Pre-Installed)
-
(1) 25520 Inner Race – 3.265" OD (Pre-Installed)
-
(1) 15245 Outer Race – 2.441" OD (Pre-Installed)
-
(1) Double-Lip Grease Seal – 2.250" ID × 3.376" OD
-
(1) 6,000 lb Grease Cap with Rubber Plug
-
(1) Cotter Pin
-
(1) Spindle Nut Retainer
-
(6) Cone Wheel Lug Nuts – 1/2"-20 Thread

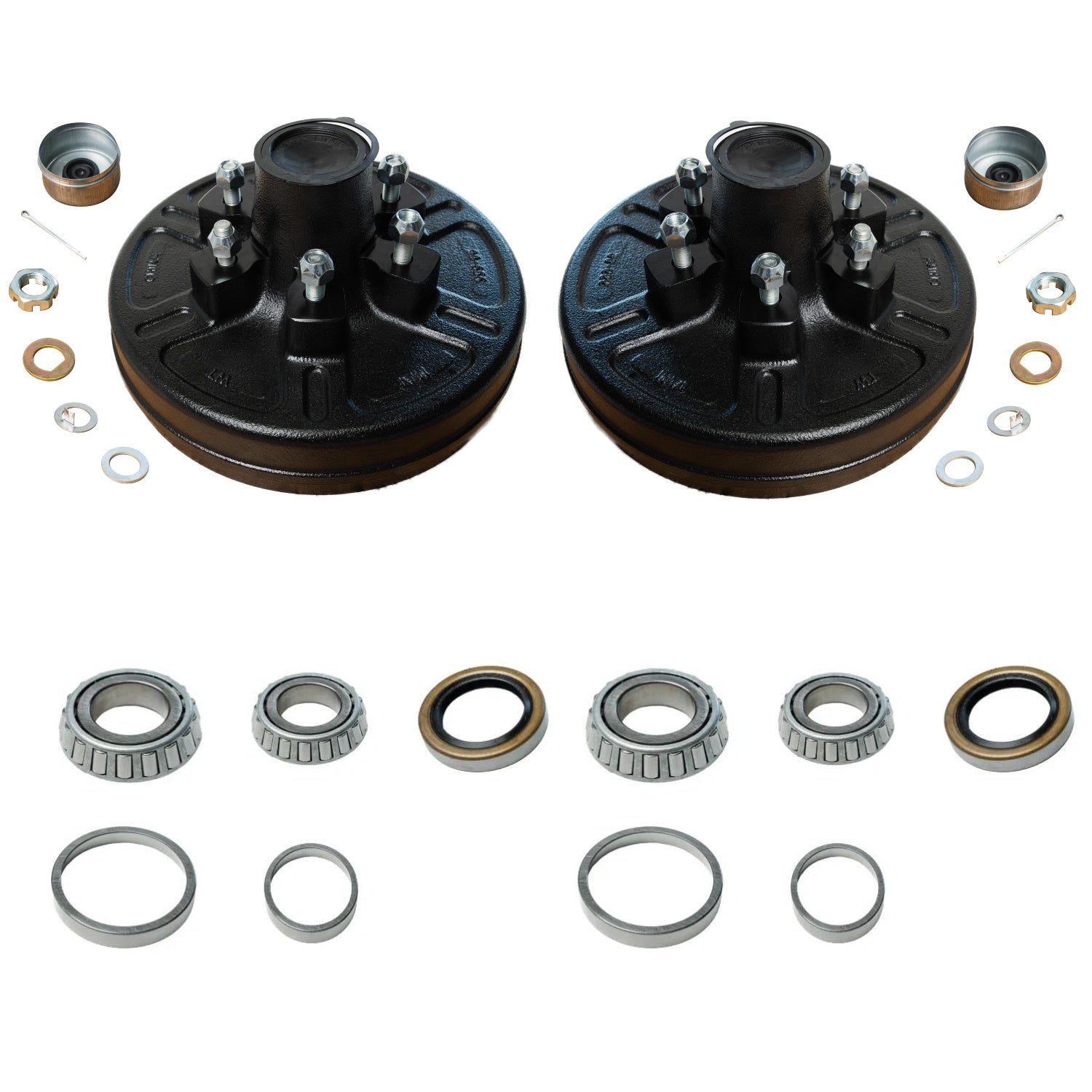

2 Pack Kit Includes:
-
(2) 12" x 2" Hub/Drum Assemblies – 6 on 5.5" Bolt Pattern
-
(2) 25580 Inner Bearings – 1.750" ID (Pre-Installed)
-
(2) 15123 Outer Bearings – 1.250" ID (Pre-Installed)
-
(2) 25520 Inner Races – 3.265" OD (Pre-Installed)
-
(2) 15245 Outer Races – 2.441" OD (Pre-Installed)
-
(2) Double-Lip Grease Seals – 2.250" ID × 3.376" OD
-
(2) 6,000 lb Grease Caps with Rubber Plugs
-
(2) Cotter Pins
-
(2) Spindle Nut Retainers
-
(12) Cone Wheel Lug Nuts – 1/2"-20 Thread
