5,000 LBs Capacity,A-Frame Trailer Jack, 15-Inch Vertical Travel, Top-Wind Handle with Foot Plate, Black
5,000 LBs Capacity,A-Frame Trailer Jack, 15-Inch Vertical Travel, Top-Wind Handle with Foot Plate, Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
5,000 LBs Capacity,A-Frame Trailer Jack, 15-Inch Vertical Travel, ...

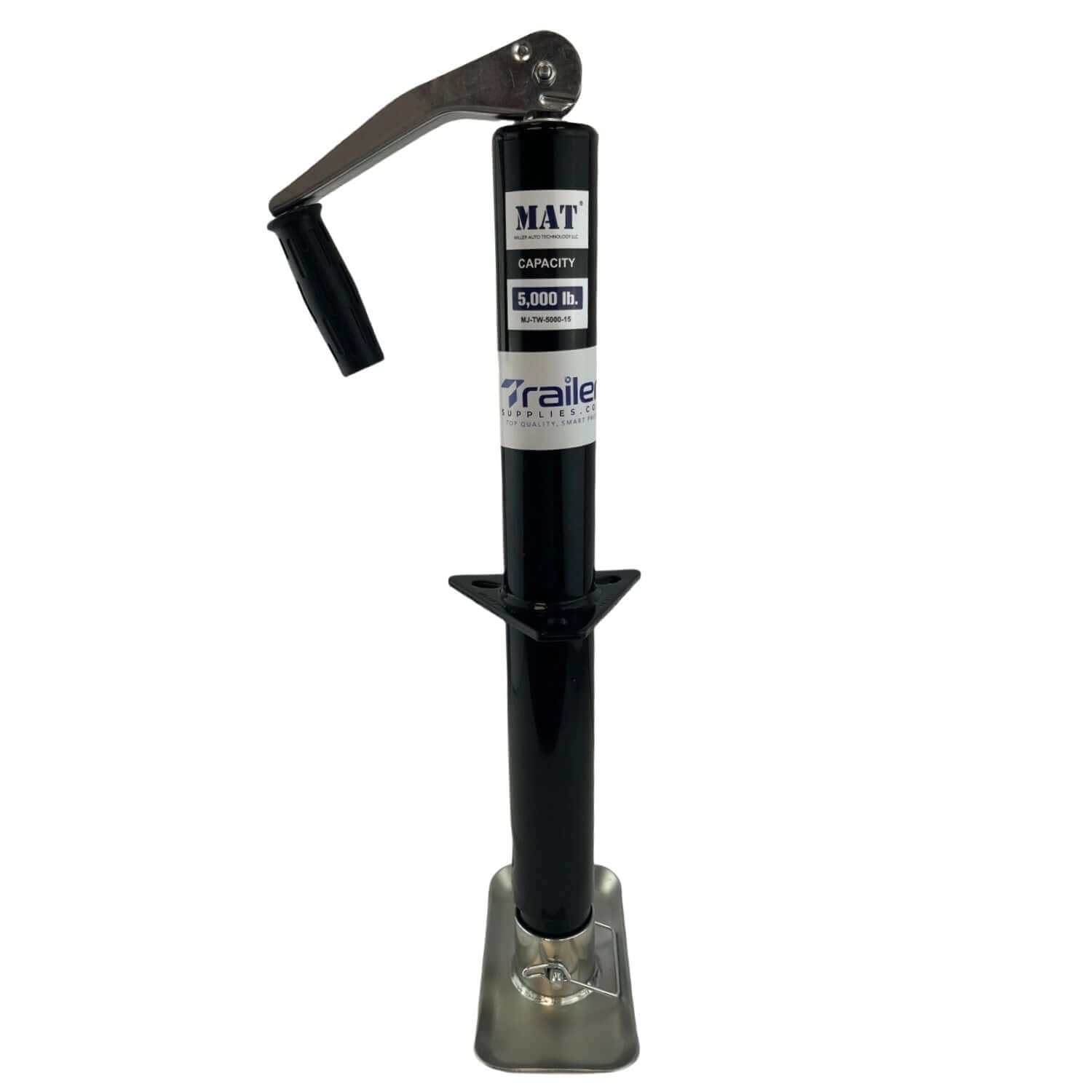

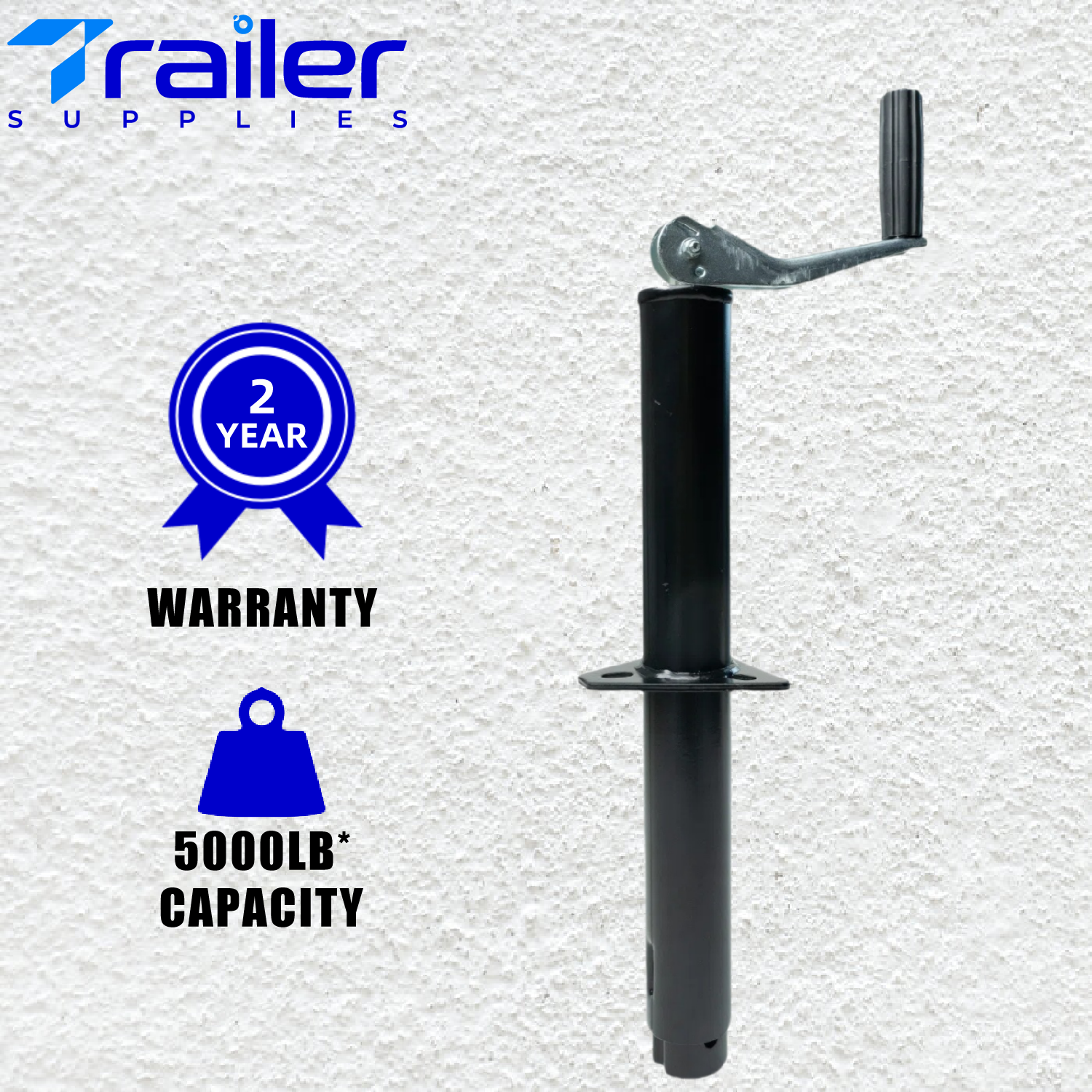

The TRAILER SUPPLIES 5,000 lb A-Frame Tongue Jack is built for heavy-duty trailer support, offering reliable lifting and stability for a wide range of trailers. Designed for use with standard A-frame couplers, this jack features 15" of vertical travel for easy hitching, unhitching, and leveling—even on uneven terrain. The heavy-duty topwind handle provides smooth operation, while the included galvanized foot plate delivers excellent ground contact and corrosion resistance. Suitable for utility, equipment, livestock, camper, and flatbed trailers, this jack supports both bolt-on and weld-on installations.
Specs:
- Capacity: 5,000 lb static support / 3,000 lb lift capacity
- Travel: 15" vertical lift
- Retracted Height (A): 10.5"
- Extended Height (B): 25.5"
- Clearance (C): 11.5"
- Finish: Durable exterior black powder coat
- Handle Finish: Zinc-plated topwind handle with textured grip
- Foot Plate: Galvanized steel, included
- Mounting: Bolt-on or weld-on for A-frame couplers
Features:
- Heavy-Duty Load Capacity: Supports up to 5,000 lbs static load, 3,000 lbs lift—ideal for heavy-duty trailers.
- Extended 15" Lift Range: Offers improved clearance and easier leveling on uneven terrain.
- Durable Galvanized Foot Plate: Provides solid ground stability and resists corrosion on dirt, gravel, or grass.
- Smooth Topwind Operation: Ergonomic handle with textured grip for controlled raising and lowering.
- Versatile Installation: Fits standard A-frame trailer tongues; compatible with bolt-on and weld-on setups.
