7,000 lb Axles – 12"x2" Manual Electric Brake & Drum Kit for 7,000 lb Axles – 8 on 6.5", 9/16" Studs, Manual-Adjust Brake Assemblies
7,000 lb Axles – 12"x2" Manual Electric Brake & Drum Kit for 7,000 lb Axles – 8 on 6.5", 9/16" Studs, Manual-Adjust Brake Assemblies is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
7,000 lb Axles – 12"x2" Manual Electric Brake & Drum ...

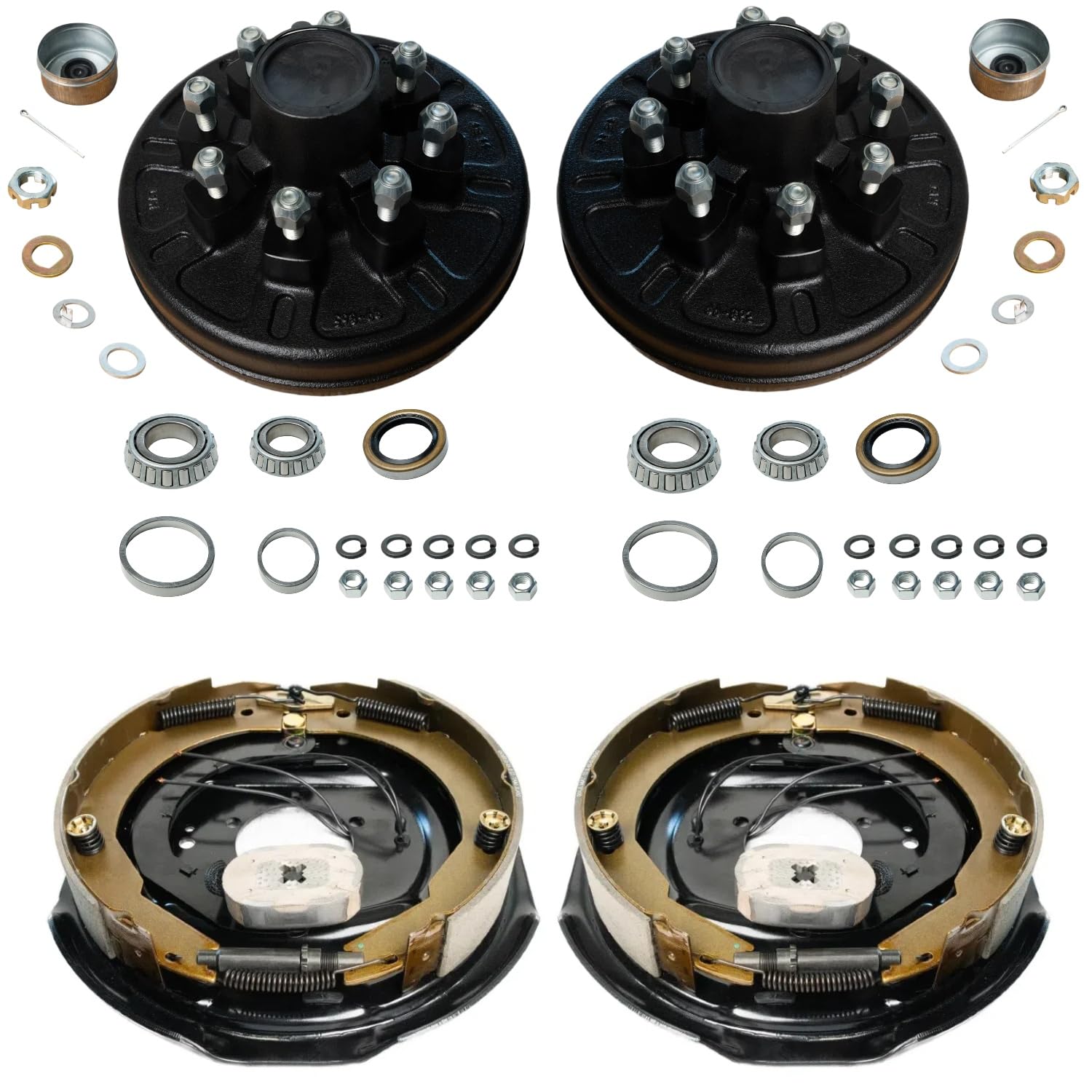

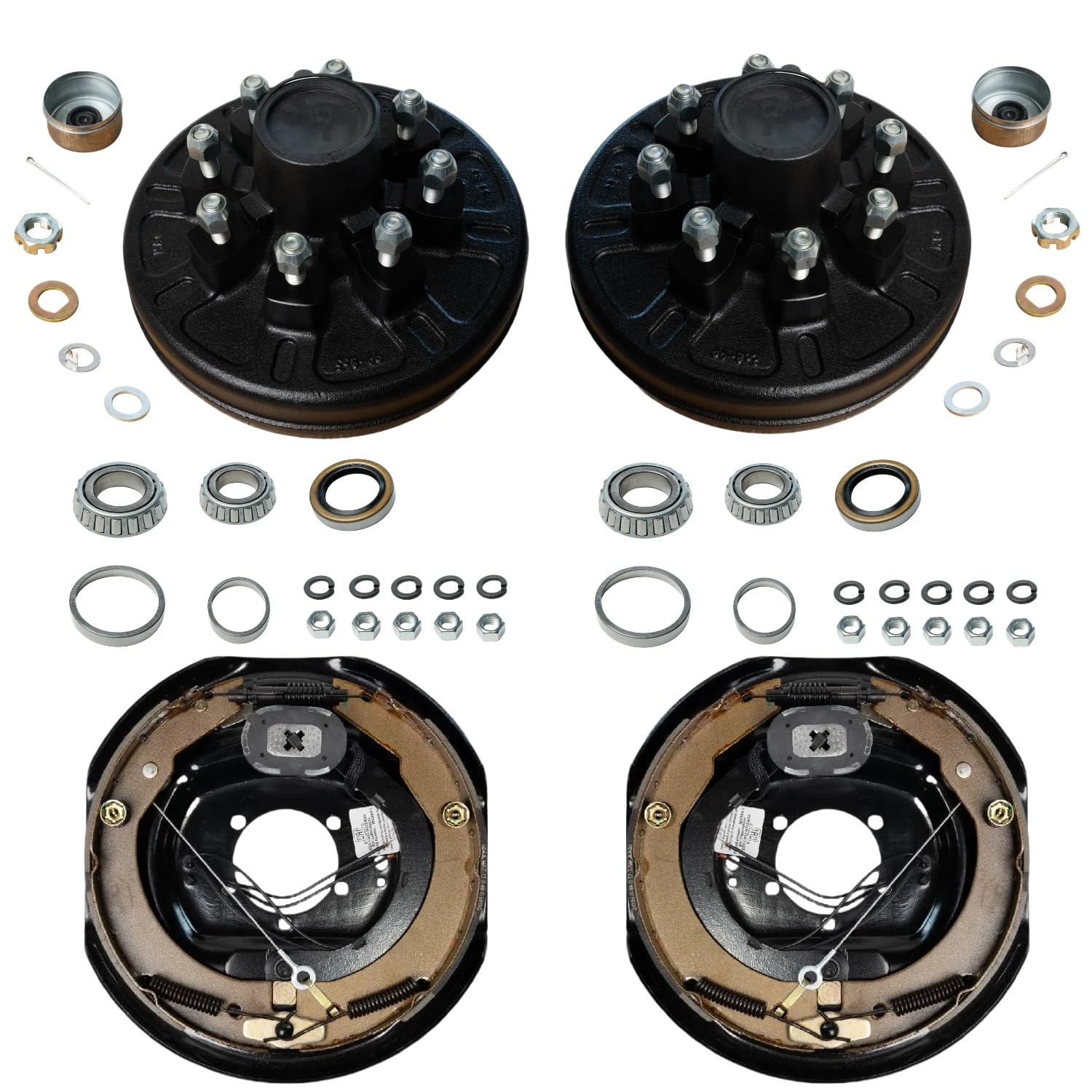

Kit Includes (1 Pair)

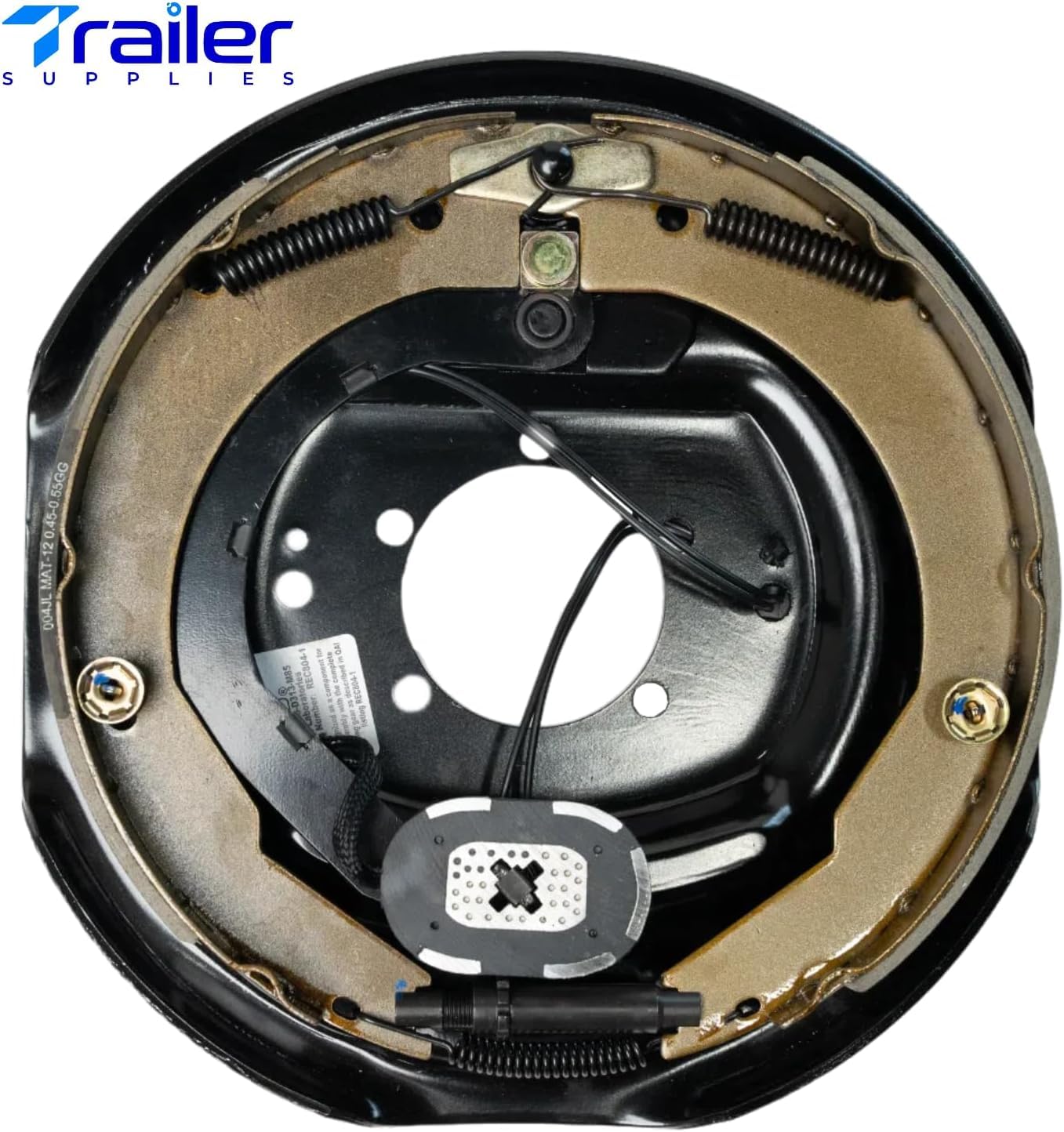

- (1) Left-Hand (Driver Side) 12"x2" Electric Brake Assembly – Manual Adjust
- (1) Right-Hand (Passenger Side) 12"x2" Electric Brake Assembly – Manual Adjust

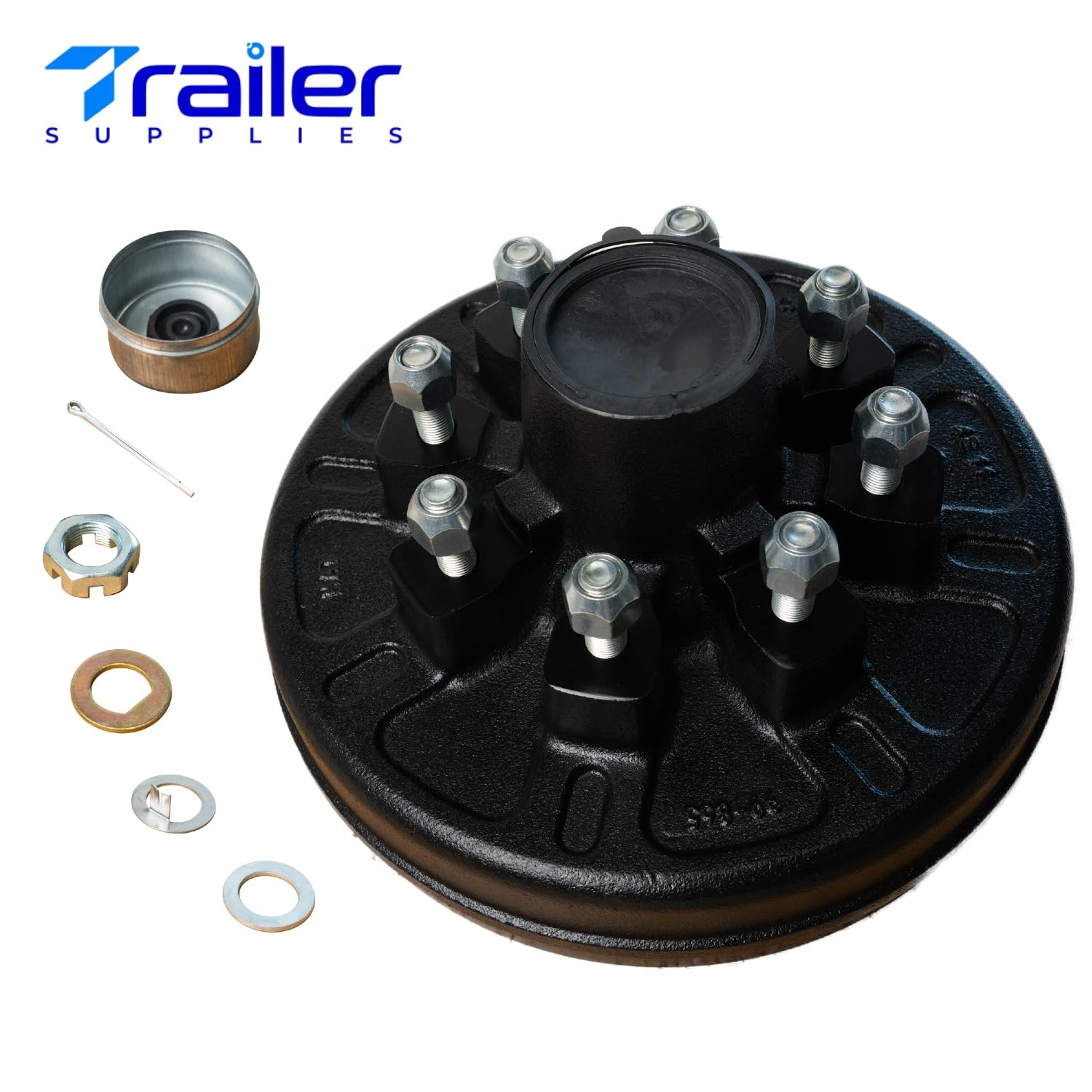

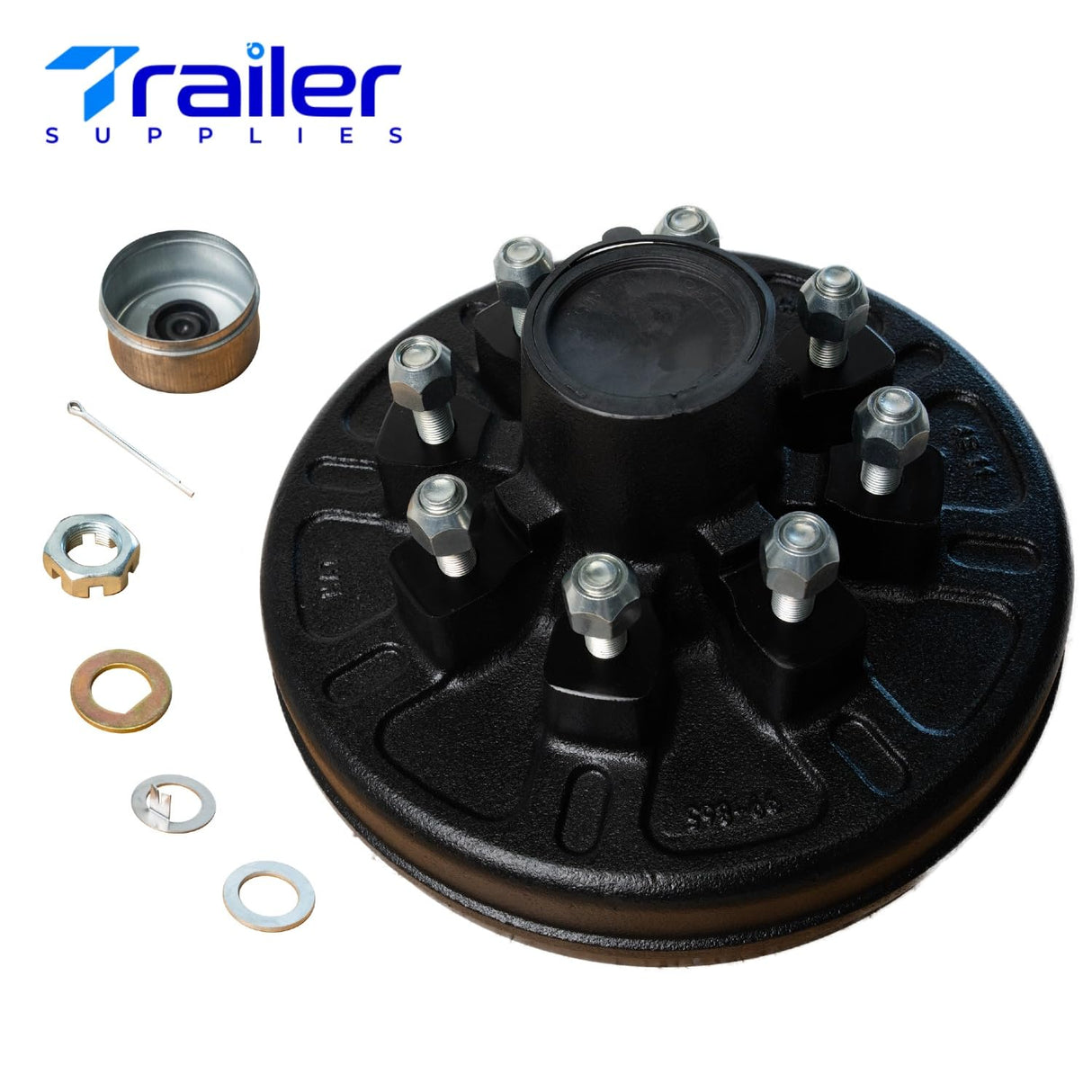

- (2) Hub & Drum Assemblies – 8 on 6.5" bolt pattern, 9/16"-18 pre-installed studs & lug nuts
- (2) 25520 Inner Races – 3.265" OD (pre-pressed in hub)
- (2) 14276 Outer Races – 2.717" OD (pre-pressed in hub)
- (2) 25580 Inner Bearings – 1.750" ID (pre-installed)
- (2) 14125A Outer Bearings – 1.250" ID (loose)
- (2) 10-225 Double Lip Grease Seals – 3.376" OD × 2.250" ID (pre-installed)
- (2) Grease Caps with Rubber Plugs
- (2) Plastic Hub Covers
- (2) Castle Nuts
- (2) D Washers
- (2) Flat Washers
- (2) Tang Washers
- (2) Cotter Pins
- (10) Brake Mounting Nuts with Lock Washers (5 per brake)
Key Features
- Fits 7,000 lb Axles – Compatible with Dexter, Lippert, AL-KO, Rockwell, and other 7K axle brands using #42 spindles
- Manual Adjust Brakes – Allows precise brake shoe clearance adjustment for optimal braking
- Pre-Greased Drums – 25580 inner bearing & grease seal installed; outer bearing included loose for quick assembly

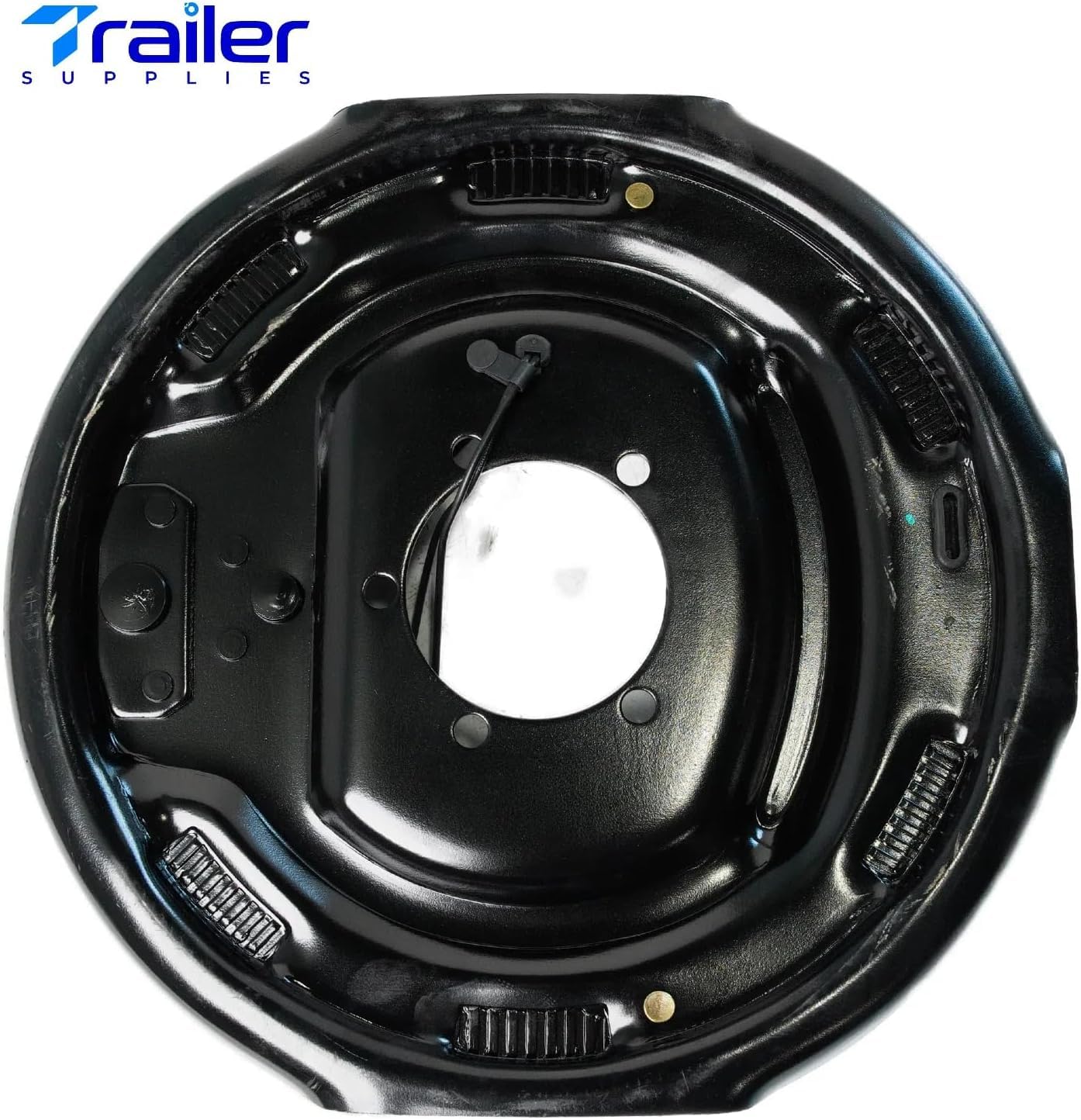

- Heavy-Duty Construction – Durable cast iron drums, high-strength steel brake backing plates, and industrial-grade hardware
- 8 on 6.5" Bolt Pattern – With 9/16"-18 heavy-duty wheel studs and lug nuts
- Complete Hardware Kit – Includes dust caps, hub covers, D washers, tang washers, cotter pins, and brake mounting nuts
OEM Cross-Reference
- Brake Assemblies: Dexter K23-464-00 (LH), K23-465-00 (RH)
- Hub/Drums: Dexter 008-219-04, 22004K
- Bearings: 25580 / 14125A
- Grease Seal: 10-225
