12"x2" Brake & Drum Kit 5,200–7,000 lb – Manual and Self-Adjusting
12"x2" Brake & Drum Kit 5,200–7,000 lb – Manual and Self-Adjusting - Manual is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
12"x2" Brake & Drum Kit 5,200–7,000 lb – Manual and S...

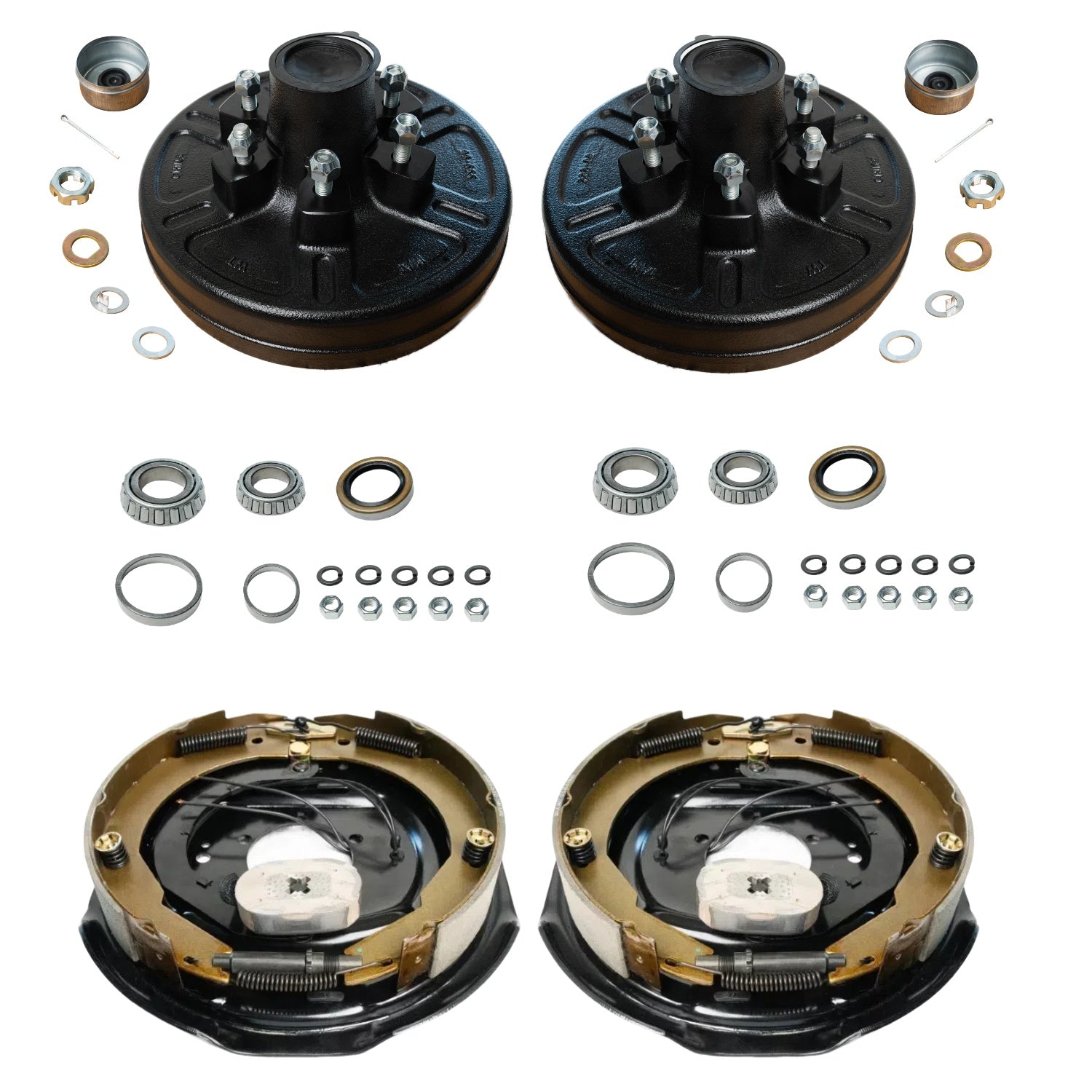

Upgrade or replace your trailer’s braking system with this complete 1-pair Brake & Drum Kit from TrailerSupplies, offered in both manual adjusting and self-adjusting versions. Designed for 5,200–7,000 lb trailer axles, each kit includes one left-hand and one right-hand 12"x2" electric brake assembly, along with two 12"x2" hub and drum assemblies featuring a standard 6 on 5.5" bolt pattern.

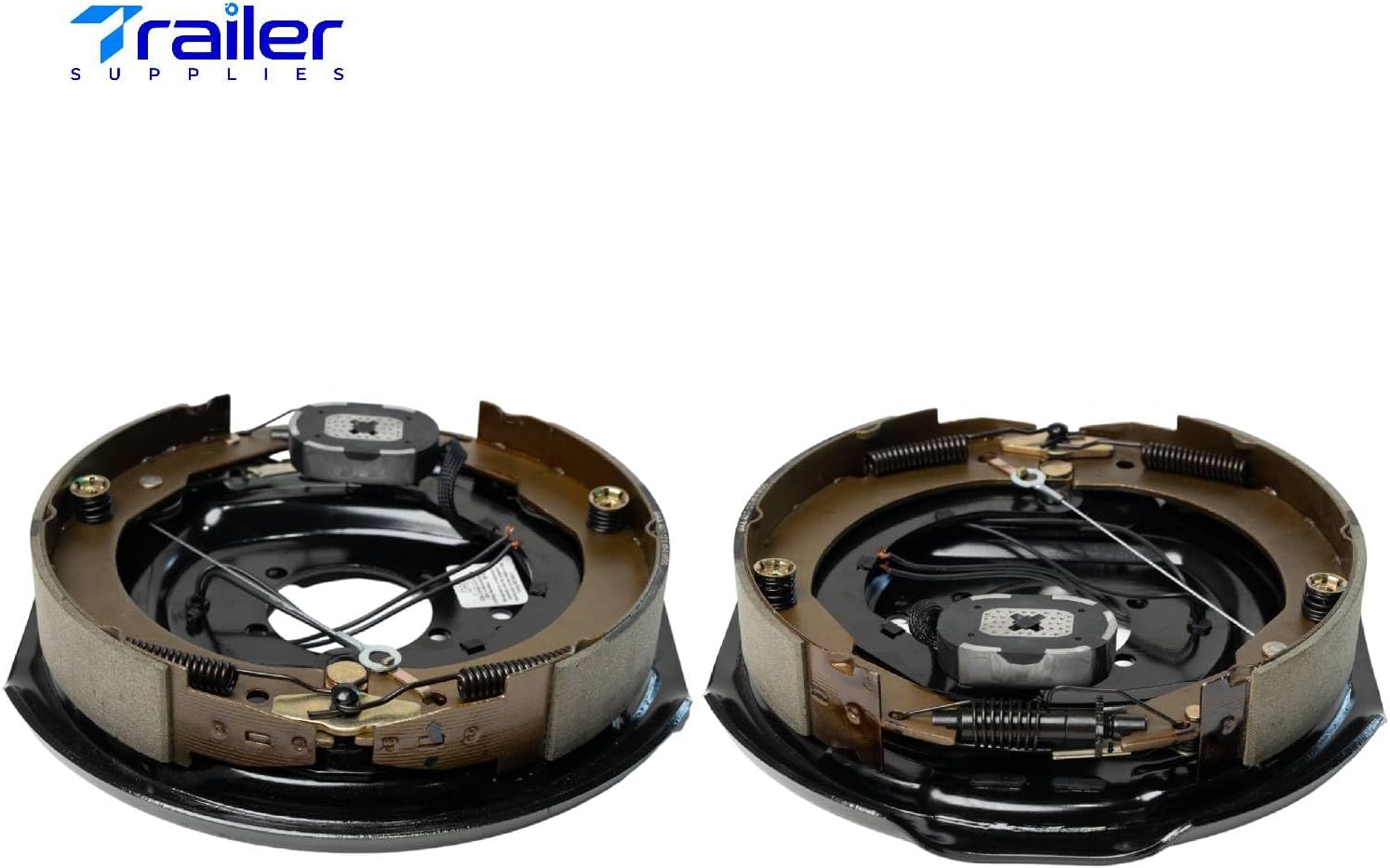

Manual Adjusting Version Includes:
-

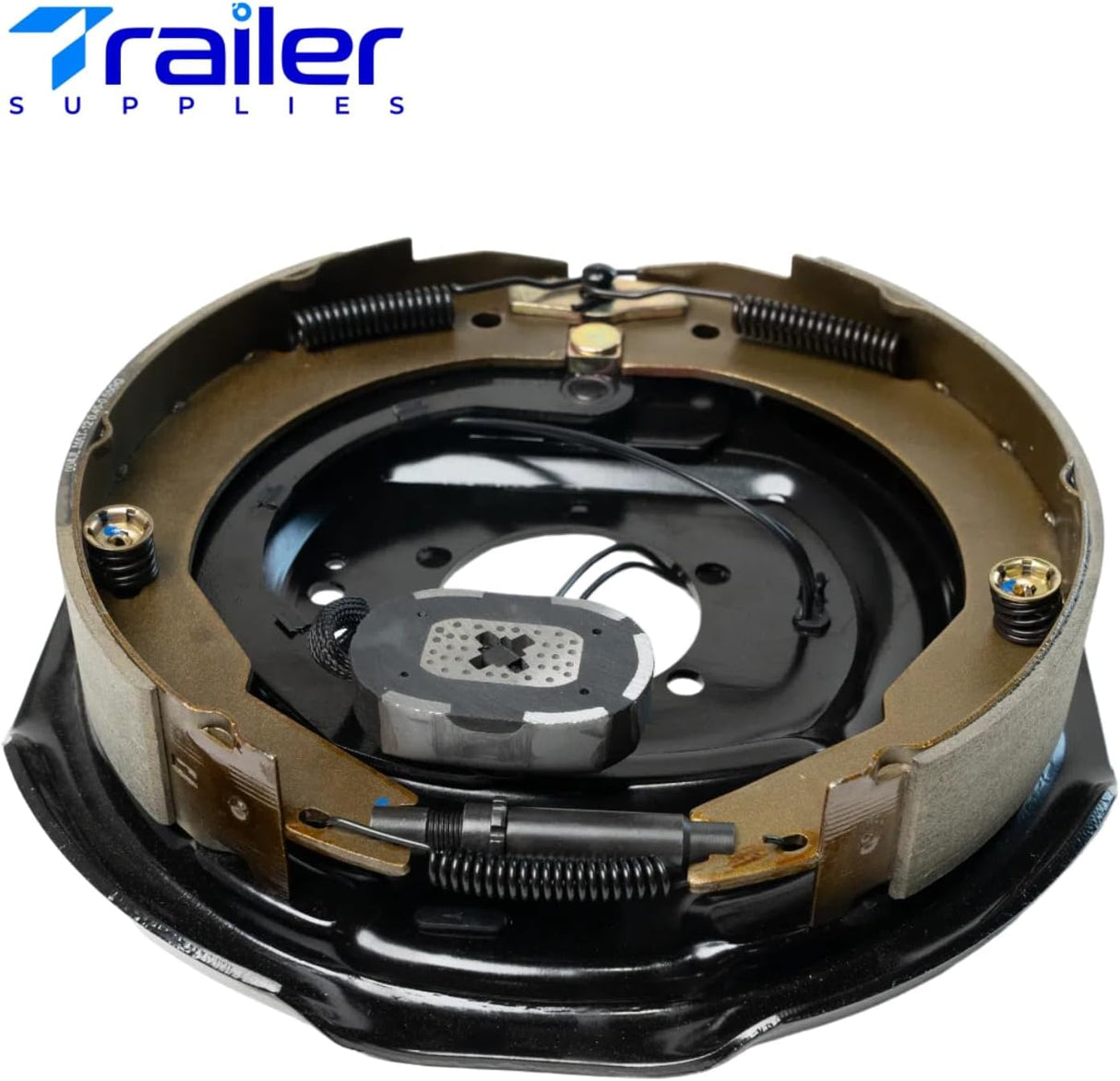

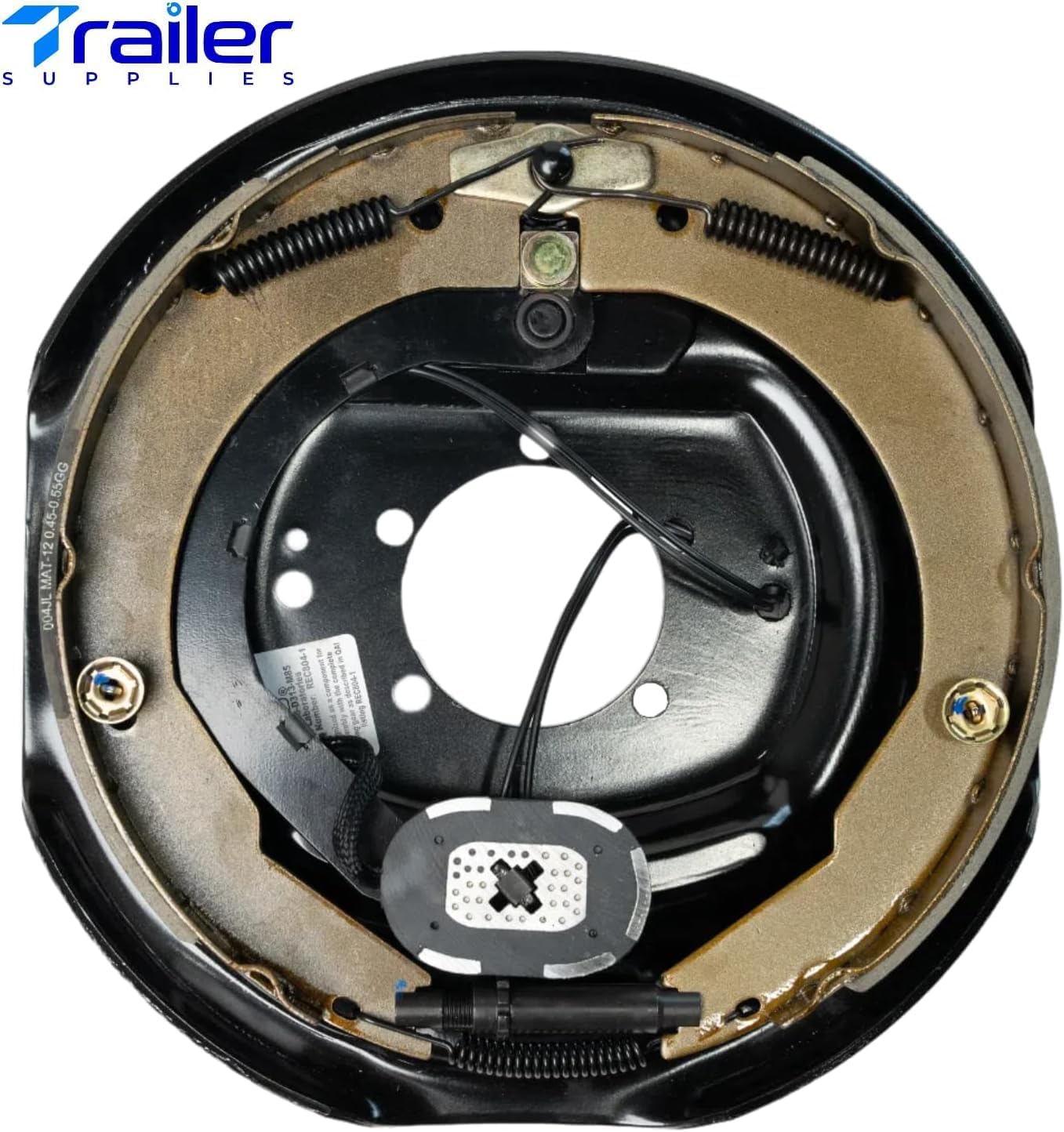

(1) Left-Hand 12"x2" Manual Adjust Electric Brake Assembly – Replaces Dexter K23-180-00
-
(1) Right-Hand 12"x2" Manual Adjust Electric Brake Assembly – Replaces Dexter K23-181-00
-
(2) 12"x2" Hub and Drum Assemblies – 6 on 5.5" bolt pattern – Replaces Dexter 008-201-09 / 42656
-
Bearings: 25580 Inner, 15123 Outer (pre-pressed)
-
Races: 25520 Inner, 15245 Outer (pre-pressed)
-
Grease Seals: 2.250" ID × 3.376" OD
-
(2) EZ Lube Grease Caps with Rubber Plugs
-
(2) Cotter Pins, (2) Spindle Nut Retainers, (12) Cone Wheel Lug Nuts – 1/2"-20 thread

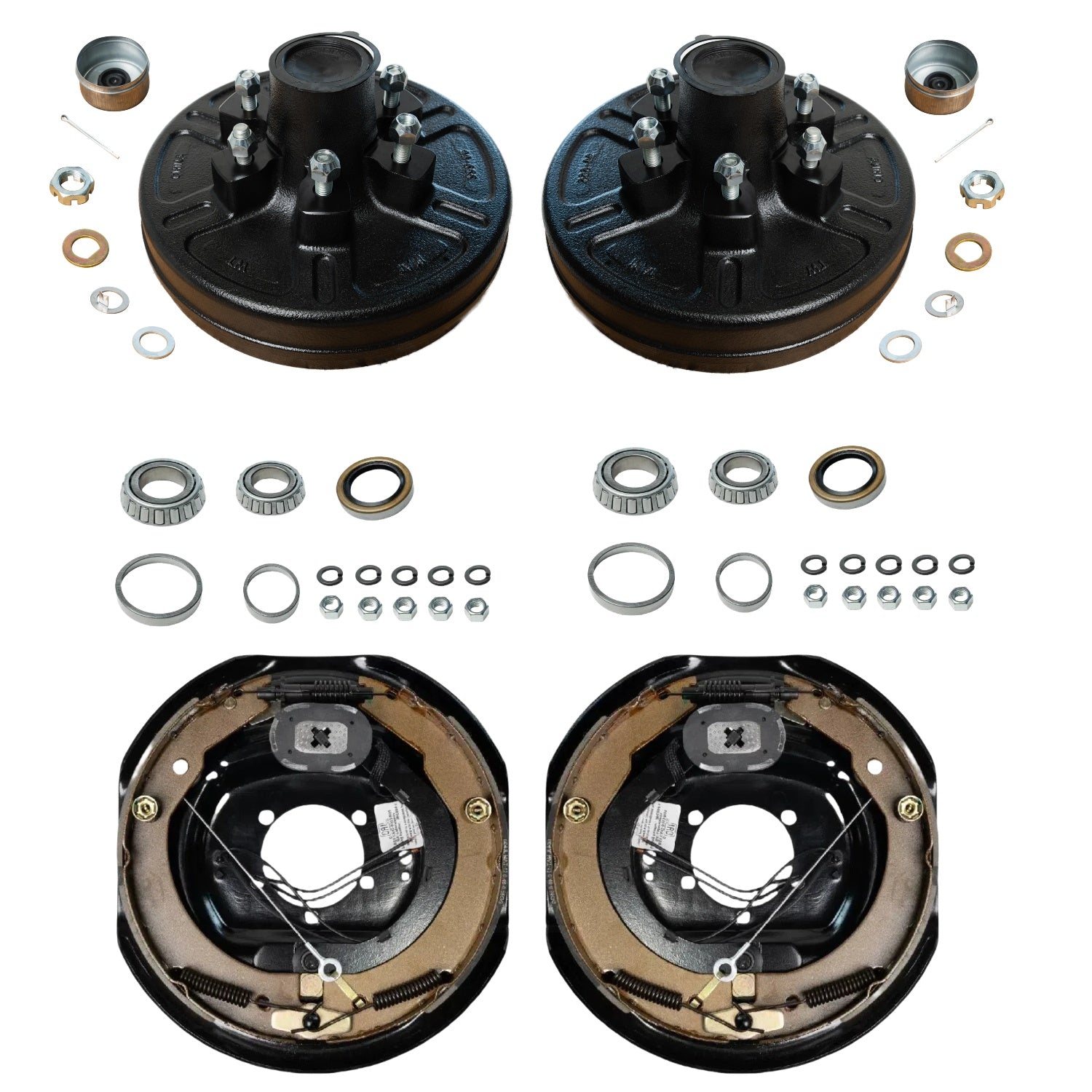

Self-Adjusting Version Includes:
-

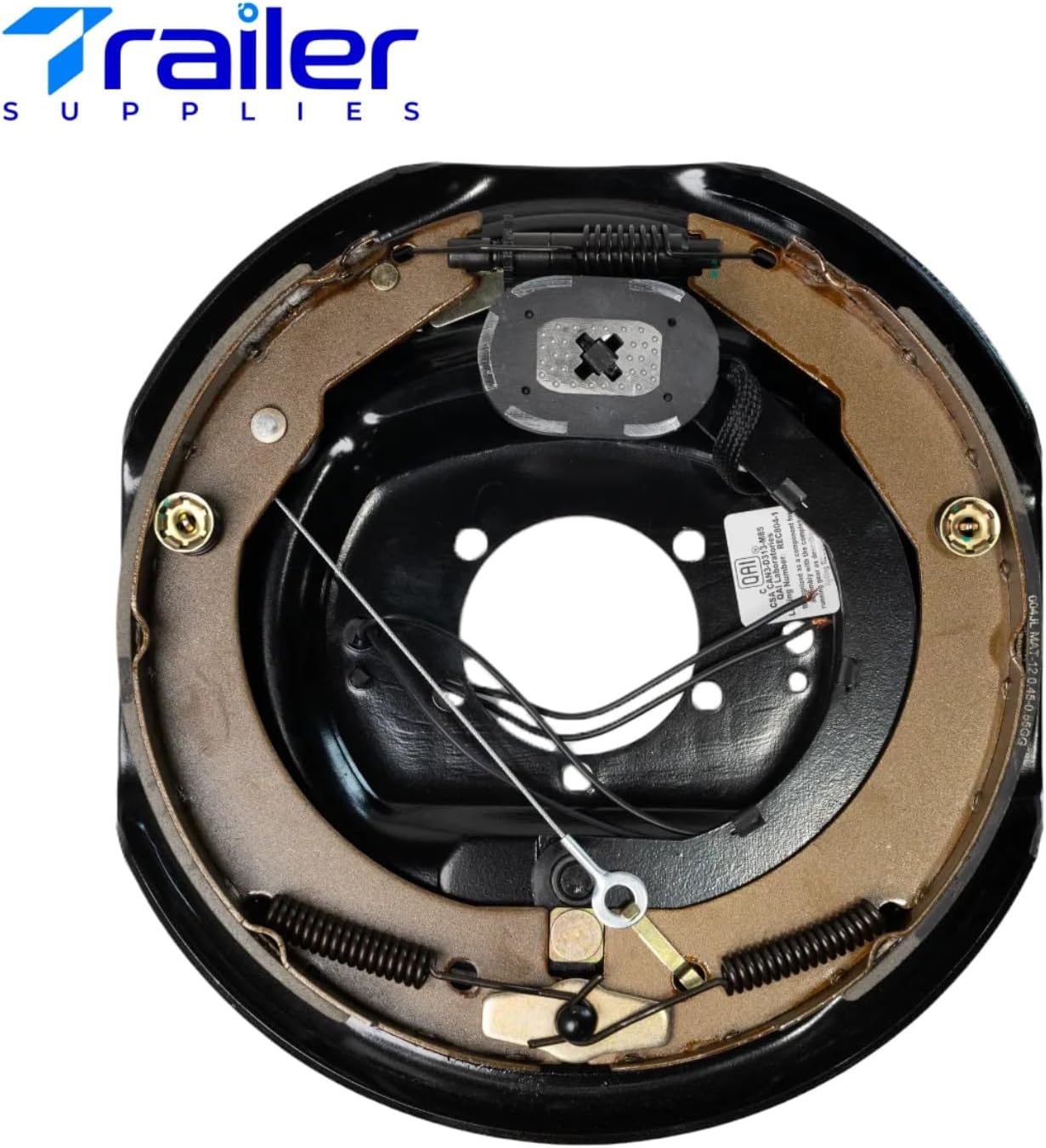

(1) Left-Hand 12"x2" Self-Adjusting Electric Brake Assembly – Replaces Dexter K23-464-00
-
(1) Right-Hand 12"x2" Self-Adjusting Electric Brake Assembly – Replaces Dexter K23-465-00
-
(2) 12"x2" Hub and Drum Assemblies – 6 on 5.5" bolt pattern – Replaces Dexter 008-201-09
-
Bearings: 25580 Inner, 14125A Outer (pre-pressed)
-
Grease Seals, EZ Lube Grease Caps, Cotter Pins, Flat Washers, Castle Nuts, and Spring Washers
Features:
-
Compatible with Dexter, Lippert, AL-KO, Rockwell, and Quality trailer axles
-
Works with standard 5-bolt brake flanges and 3.25" center bores
-
Fits most 15"–17.5" trailer wheels
-
Precision-machined steel drums ensure smooth braking and long-term durability
-
Pre-installed components save installation time and ensure proper fit
-
Choose between manual adjust brakes for cost efficiency or self-adjusting brakes for lower maintenance
OEM Replacement Numbers:
-
Manual Brakes: Dexter K23-180-00 (LH), K23-181-00 (RH), 008-201-09, 42656
-
Self-Adjusting Brakes: Dexter K23-464-00 (LH), K23-465-00 (RH), 008-201-09
