3,500 lb Axle,5 on 4.5" Fits 1-1/16”-1-3/8” Trailer Hub Kit
3,500 lb Axle,5 on 4.5" Fits 1-1/16”-1-3/8” Trailer Hub Kit - 1 hub is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
3,500 lb Axle,5 on 4.5" Fits 1-1/16”-1-3/8” Trailer Hub Kit
Upgrade your trailer with this fully assembled 3.5K hub kit from Trailer Supplies. Engineered for 3,500 lb axles and standard #84 tapered spindles, this idler hub kit features a 5 on 4.5" bolt pattern and comes fully pre-greased and pre-assembled—no press work or packing required. Ideal for utility, RV, boat, livestock, and landscape trailers, it’s the hassle-free solution for a reliable wheel-end replacement or axle buildout.

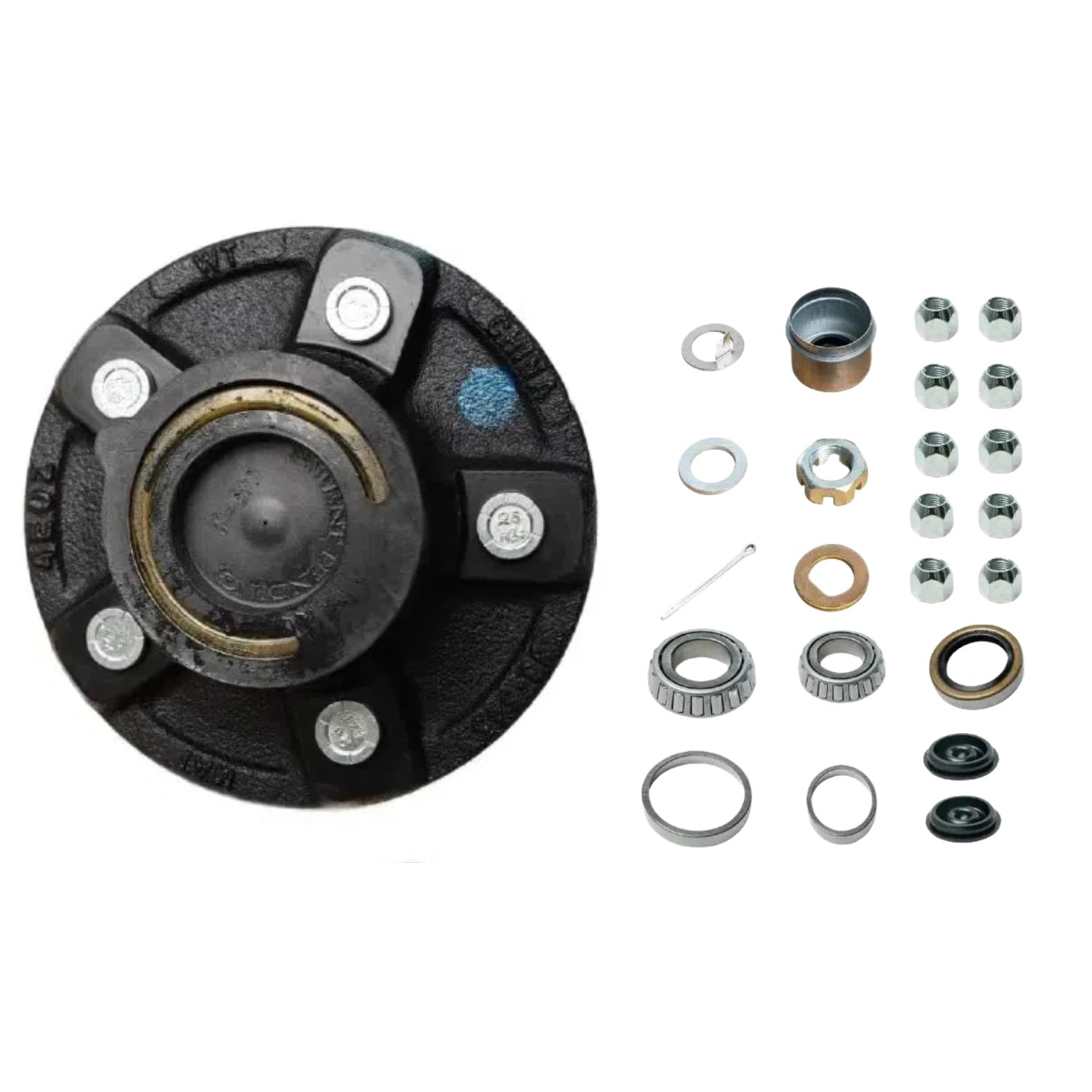

1 Hub Kit
Includes:
-

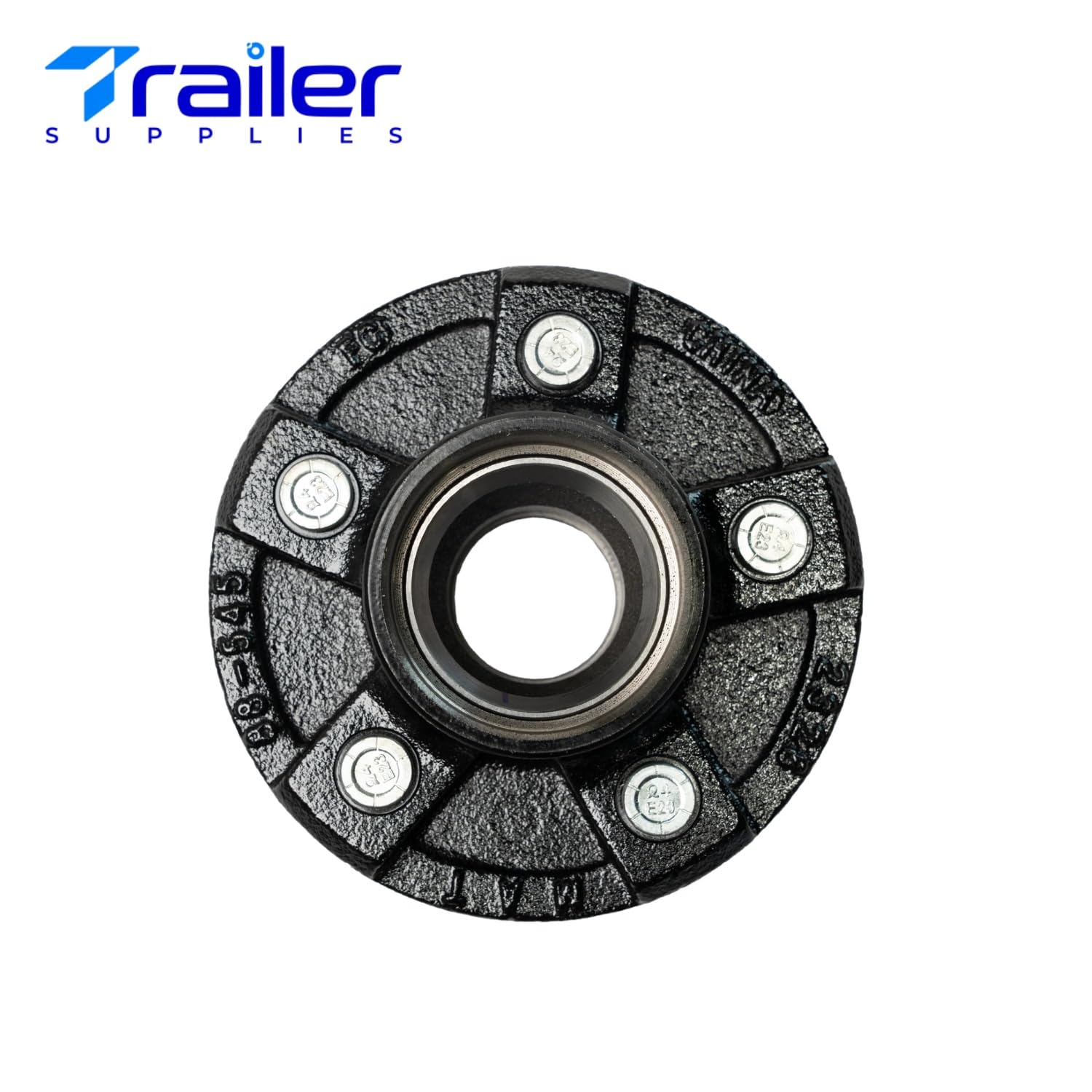

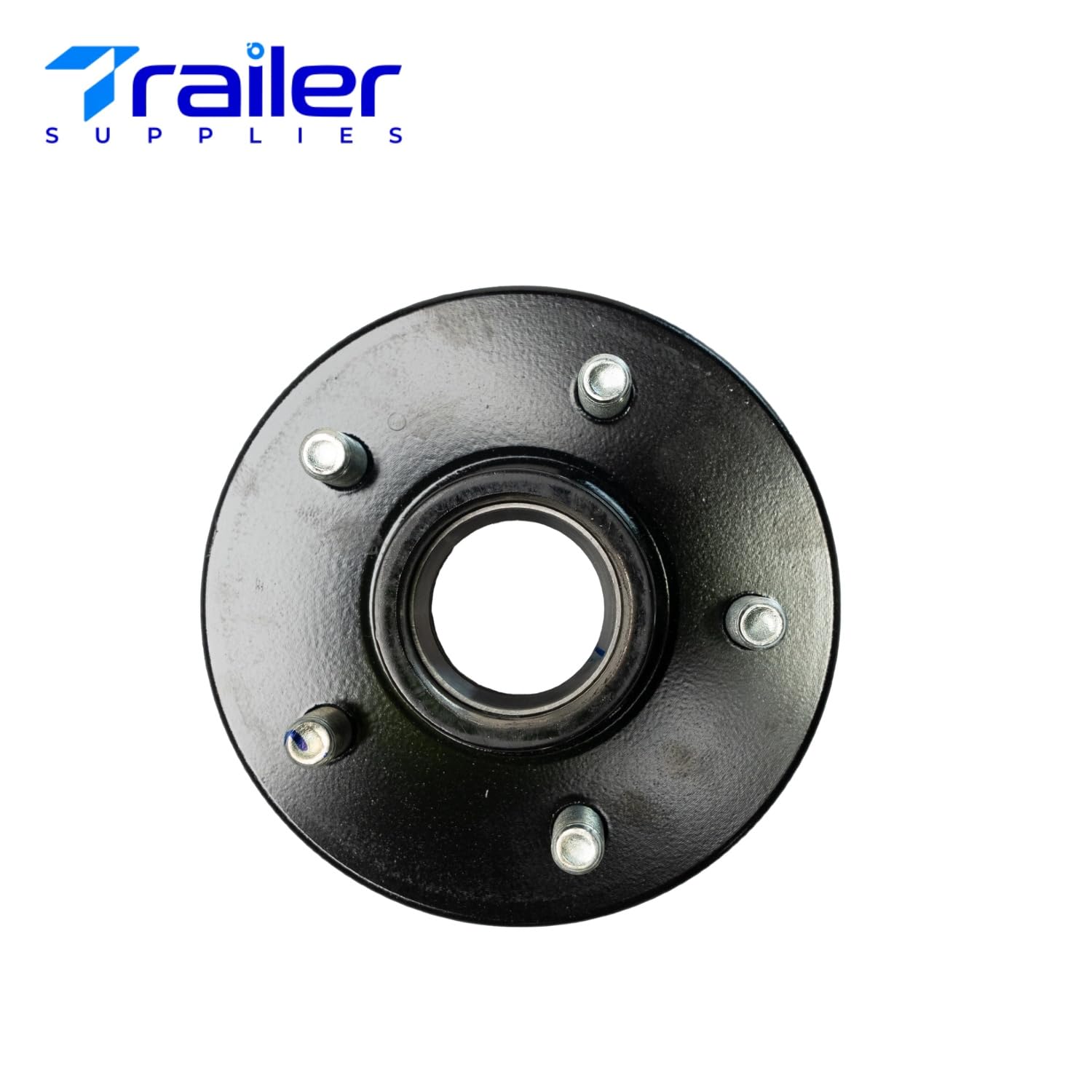

(1) Pre-Greased Idler Hub – 5 on 4.5" Bolt Pattern with 1/2"-20 Studs (Pre-installed)
-
(1) L68149 Inner Bearing – 1.378" ID × 2.361" OD (Pre-installed)
-
(1) L44649 Outer Bearing – 1.063" ID × 1.980" OD (Pre-installed)
-
(1) 10-172 Grease Seal – 1.719" ID × 2.565" OD (Pre-installed)
-
(1) L68111 Inner Race – 2.361" OD (Pre-pressed in hub)
-
(1) L44610 Outer Race – 1.980" OD (Pre-pressed in hub)
-
(1) Castle Nut – 1"-14 Thread
-
(1) Cotter Pin – 1/8" × 2-1/2"
-
(1) Tang Washer – 1" ID
-
(1) Flat Washer – 1" ID
-
(1) Dust Cap – 1.988" OD
-
(2) Rubber Plugs – For EZ Lube Access

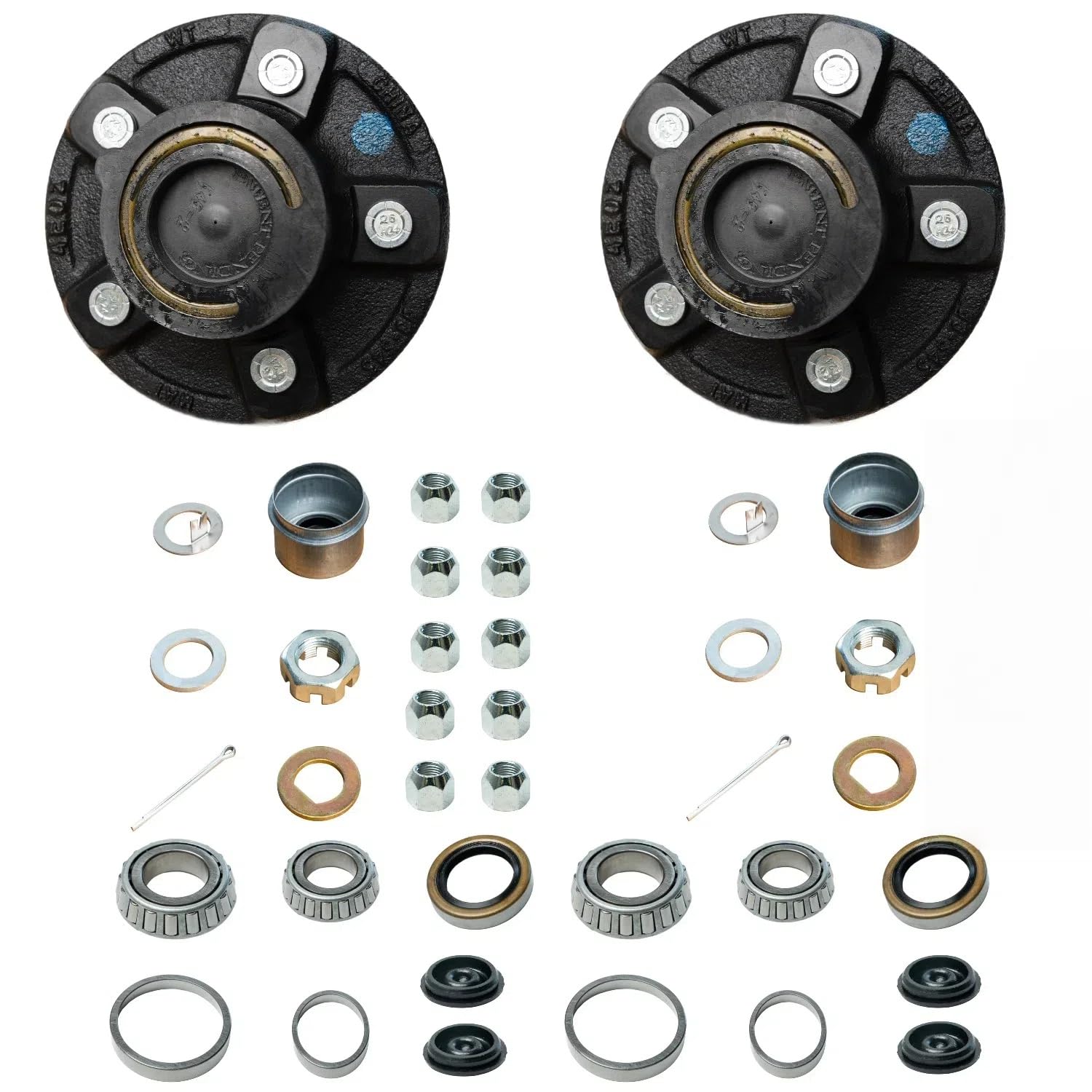

2 Hub Kit
Includes:
-
(2) Pre-Greased Idler Hubs – 5 on 4.5" Bolt Pattern with 1/2"-20 Studs (Pre-installed)
-
(2) L68149 Inner Bearings – 1.378" ID × 2.361" OD (Pre-installed)
-
(2) L44649 Outer Bearings – 1.063" ID × 1.980" OD (Pre-installed)
-
(2) 10-172 Grease Seals – 1.719" ID × 2.565" OD (Pre-installed)
-
(2) L68111 Inner Races – 2.361" OD (Pre-pressed in hubs)
-
(2) L44610 Outer Races – 1.980" OD (Pre-pressed in hubs)
-
(2) Castle Nuts – 1"-14 Thread
-
(2) Cotter Pins – 1/8" × 2-1/2"
-
(2) Tang Washers – 1" ID
-
(2) Flat Washers – 1" ID
-
(2) Dust Caps – 1.988" OD
-
(4) Rubber Plugs – For EZ Lube Access
