1,500 Capacity Rated Trailer Axles 24.62" 3-Leaf Radius End Trailer Spring 1-3/4" Wide
1,500 Capacity Rated Trailer Axles 24.62" 3-Leaf Radius End Trailer Spring 1-3/4" Wide - 1 Pair is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
1,500 Capacity Rated Trailer Axles 24.62" 3-Leaf Radius End T...

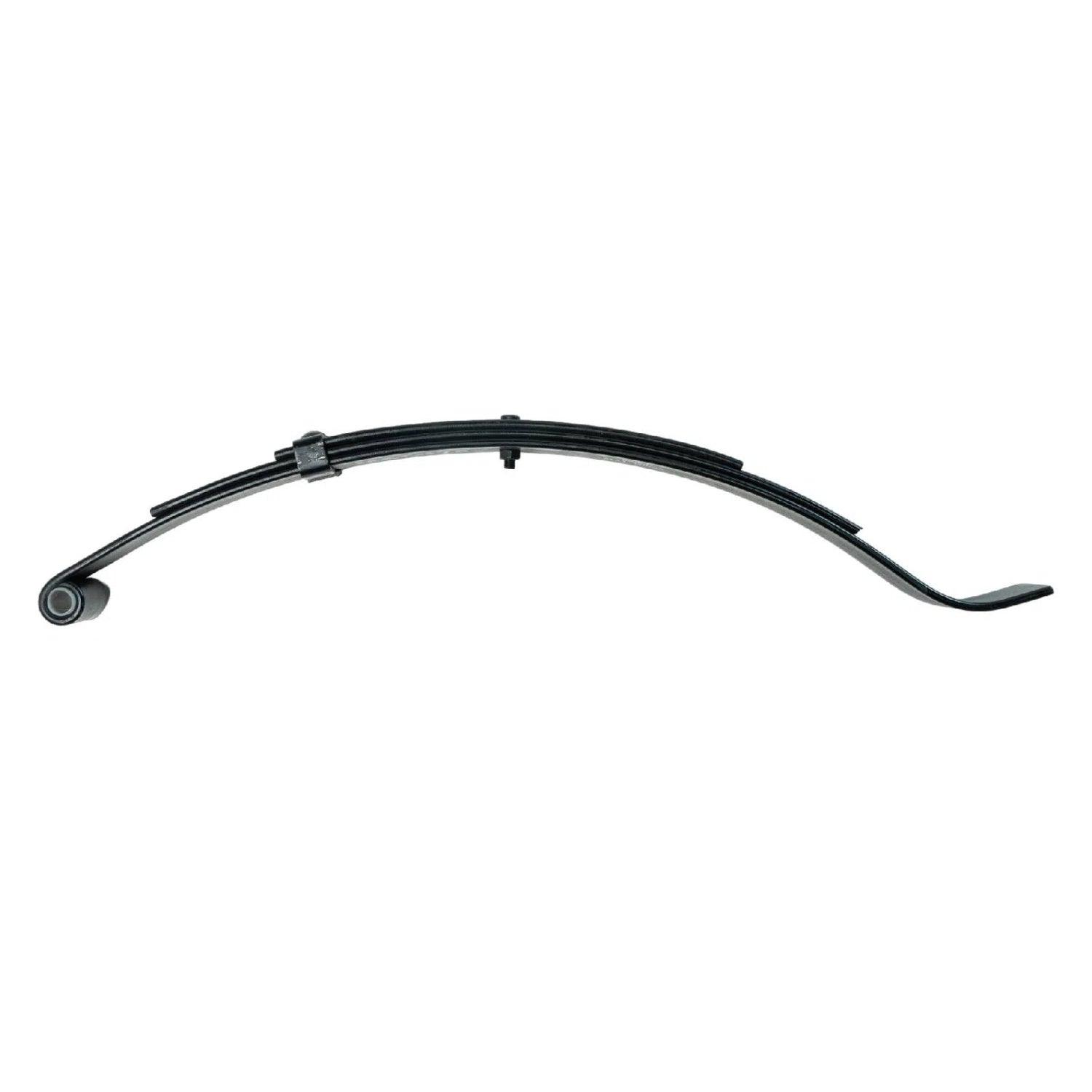

Upgrade your trailer’s suspension with this pair of 3-leaf radius end trailer springs, designed for single axle trailers rated up to 1,500 lbs. Measuring 24.62" in length and 1-3/4" in width, these springs offer smooth performance, reduced sag, and improved stability. Built from heat-treated steel with a rust-resistant coating, they provide dependable performance for utility, boat, and light-duty cargo trailers. Each spring comes with a pre-installed black bushing (9/16" ID) for easy installation.
OEM Compatibility: Direct replacement for Dexter 4331-07B, UNA-178, UNA-203, and compatible with TS820-3, WE-3, WIE-3, LR24503F, and other popular models.
【1 Kit】
Kit Includes:
-
(1) 3-leaf radius end trailer spring (750 lbs capacity)
-
Pre-installed 9/16" ID black nylon bushing
Key Features:
-
Capacity: Supports up to 750 lbs (for single spring replacement)
-
Dimensions: 24.62" length × 1-3/4" width × 9/16" bushing ID
-
Material: Heat-treated steel with corrosion-resistant finish
-
OEM Replacements: Dexter 4331-07B, UNA-178, UNA-203, TS820-3, WE-3, WIE-3, LR24503F
-
Ideal Use: Direct replacement for a damaged or worn spring on light-duty trailers, utility trailers, and small boat trailers
【1 Pair】
Kit Includes:
(2) 3-leaf radius end trailer springs (750 lbs each)
Pre-installed 9/16" ID black nylon bushings
Key Features:
Capacity: Supports up to 1,500 lbs per axle (single axle setup)
Dimensions: 24.62" length × 1-3/4" width × 9/16" bushing ID
Material: Heat-treated steel with corrosion-resistant finish
OEM Replacements: Dexter 4331-07B, UNA-178, UNA-203, TS820-3, WE-3, WIE-3, LR24503F
【2 Pair】
Kit Includes:
(4) 3-leaf radius end trailer springs (750 lbs each)
Pre-installed 9/16" ID black nylon bushings
Key Features:
Capacity: Supports up to 3,000 lbs total (for tandem axle trailers)
Dimensions: Same as above – 24.62" length × 1-3/4" width × 9/16" bushing ID
OEM Replacements: Same as above
Ideal Use: Tandem axle light-duty trailers, utility trailers, and small boat trailers

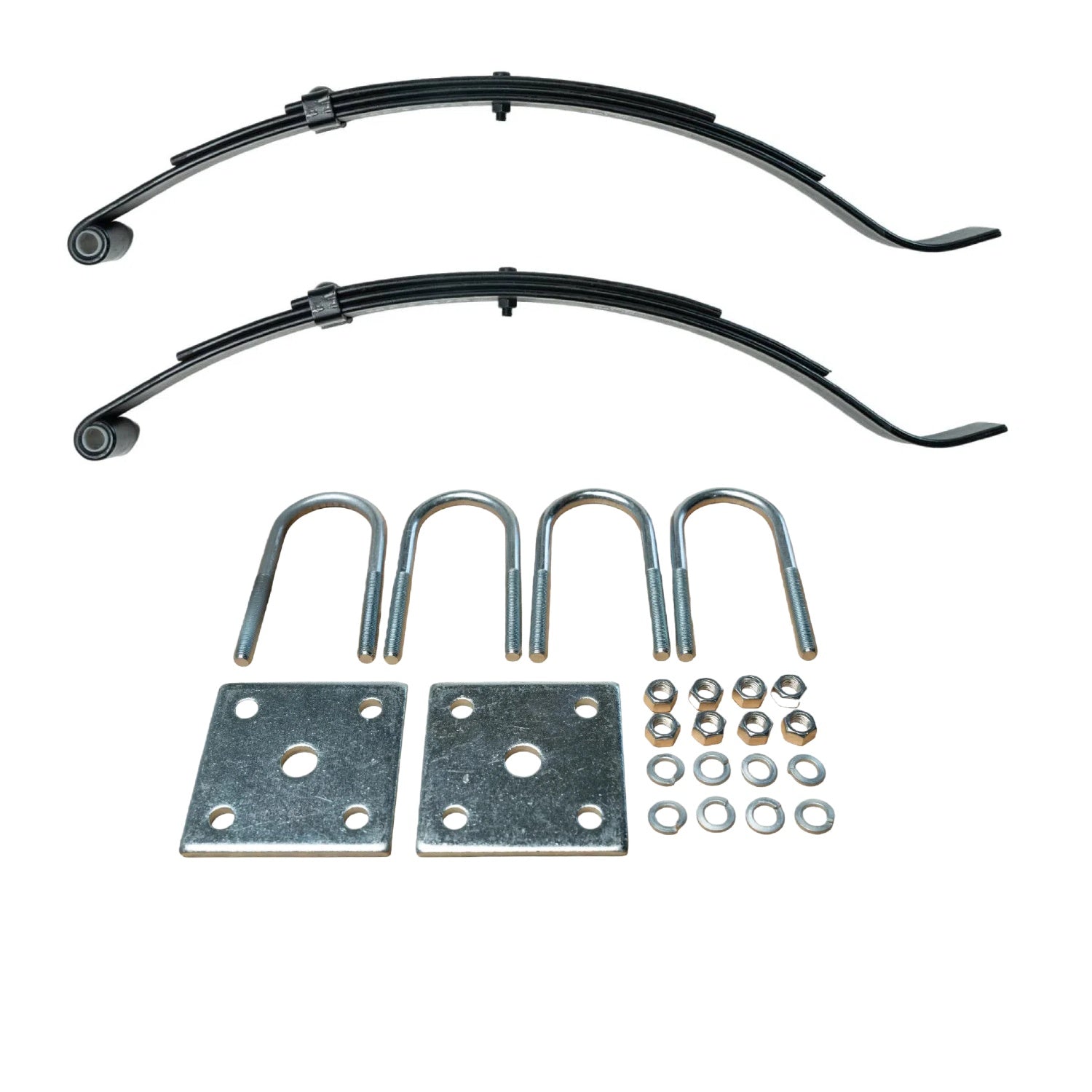

【1Kit Ubolt】
Kit Includes:
-
(2) 3-leaf slipper trailer springs (750 lbs each, total 1,500 lbs axle capacity)
-
(4) 3/8" x 4-1/4" U-bolts
-
(2) Tie plates for 1-3/4" springs
-
(8) Zinc-coated hex nuts
Capacity: Supports up to 1,500 lbs per axle (two 750 lb springs included)
Dimensions: Each spring measures 24.62" length × 1-3/4" width × 9/16" bushing ID
Material: Heat-treated steel with corrosion-resistant finish on springs and zinc-coated hardware
OEM Replacements: Dexter 4331-07B, UNA-203, WE-3, WIE-3, and other standard 3-leaf slipper spring models
Mounting Kit: Includes 4 U-bolts (3/8" x 4-1/4"), 2 tie plates, and 8 hex nuts – fits 1-3/4" round axles
Ideal Use: For utility trailers, boat trailers, jet ski trailers, and other light-duty single axle setups
